Dormer-Pramet

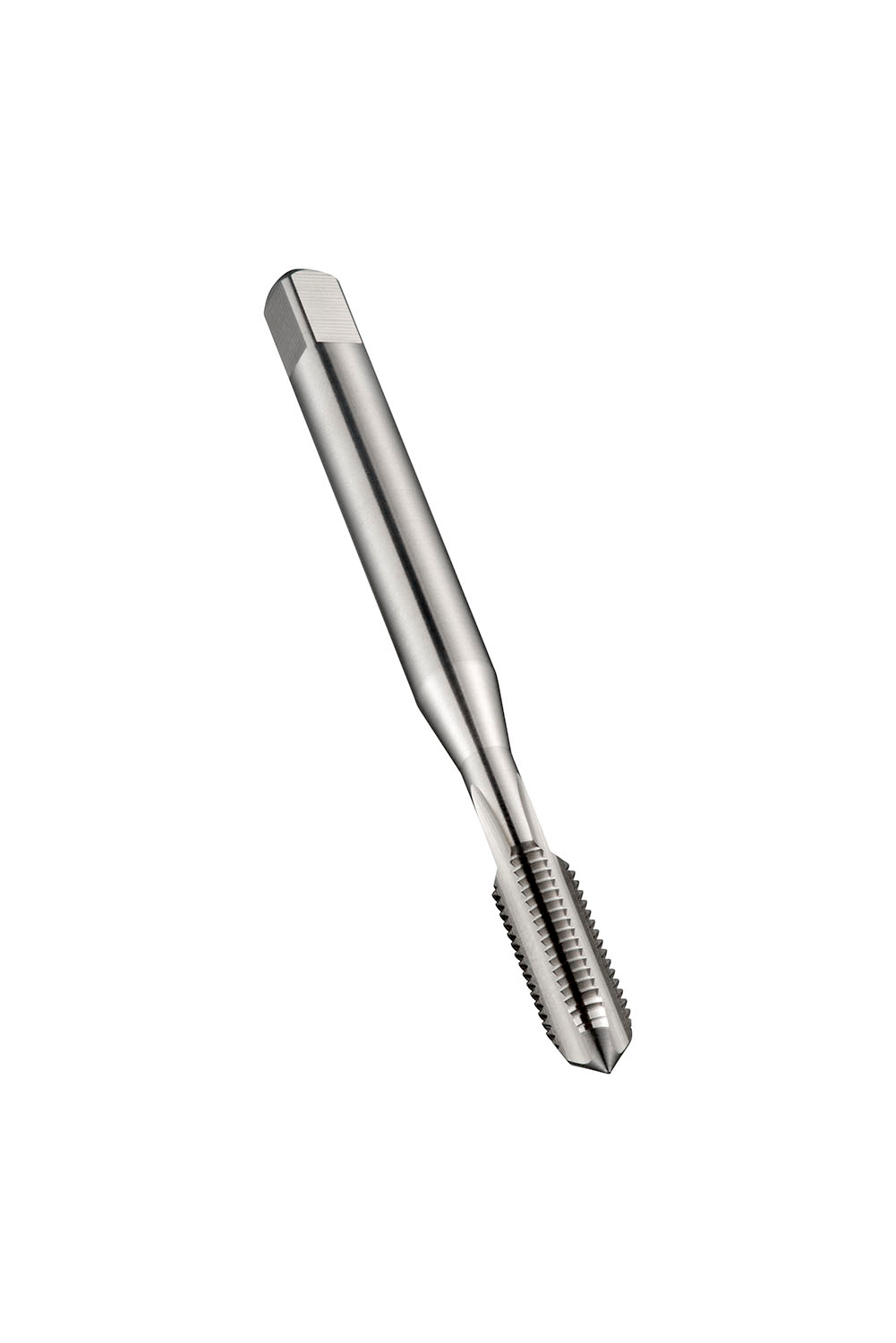

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM5 with 0.80 mm pitch and 6H class of fit, dimensions according to Dormer Pramet standard with 6.3 mm shank and 5.0 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5978280
