Dormer-Pramet

E7103/8

Material ID: 5977652

$56.67 CAD $102.00 CAD

E7103/8

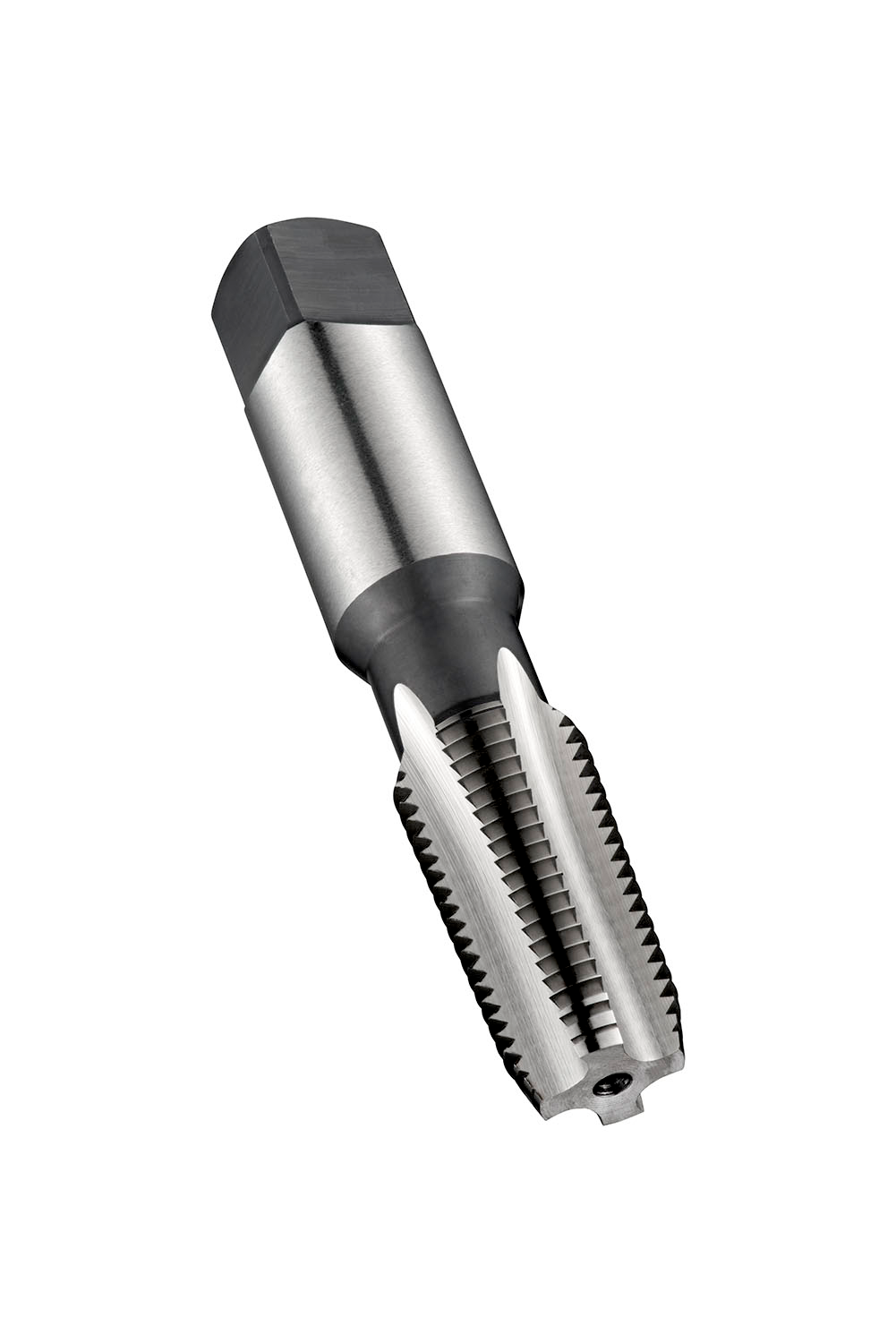

HSS Straight Flute Serial Hand Tap, NPT, ANSI Standard

Material ID: 5977652


Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 3/8 inch with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.8 mm shank and 13.5 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5977652
