Dormer-Pramet

E5383/8

Material ID: 5976612

$50.58 CAD $90.60 CAD

E5383/8

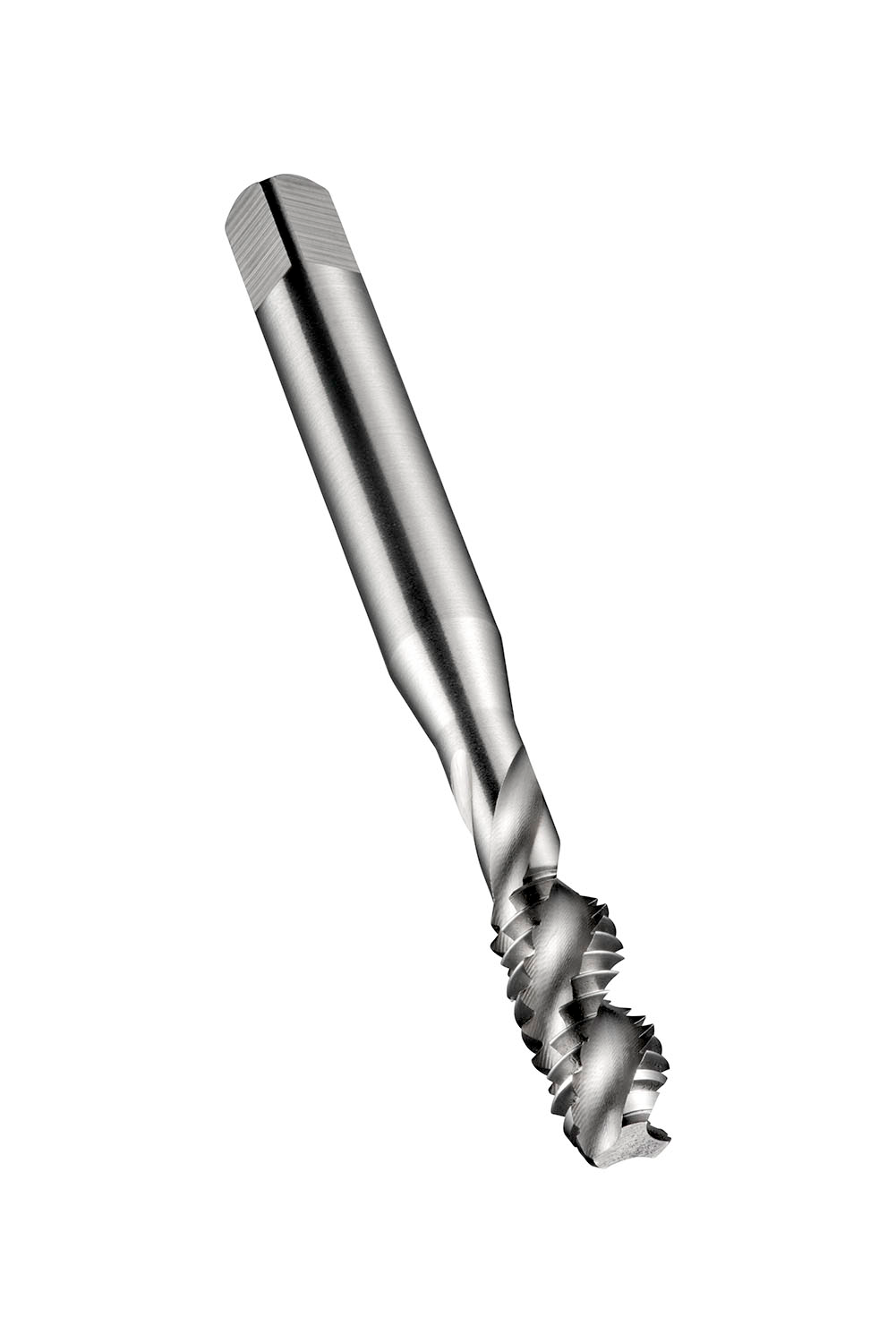

BSF Machine Tap Spiral Flute 40°

Material ID: 5976612


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Fine thread BSF 3/8 inch with 20 TPI and Medium class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in free machining, plain carbon and alloy steel

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5976612
