Dormer-Pramet
E290M20X1.5
Material ID: 5975945
Sale price
$172.22 CAD
Regular price
$310.00 CAD
E290M20X1.5

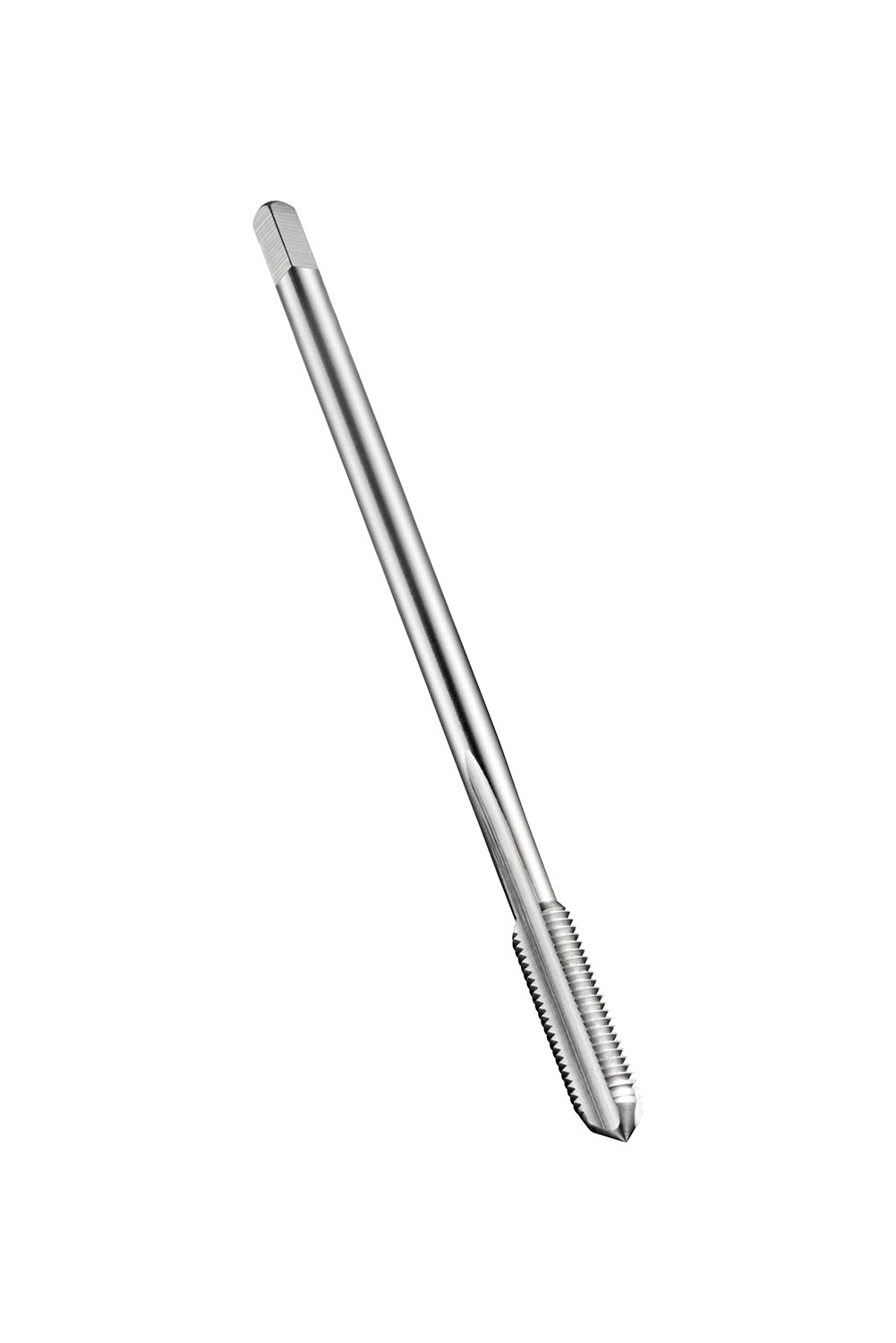

MF Machine Tap Straight Flute
Material ID: 5975945
Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
