Dormer-Pramet
E1113/4NO9
Material ID: 5975579
Sale price
$250.00 CAD
Regular price
$450.00 CAD

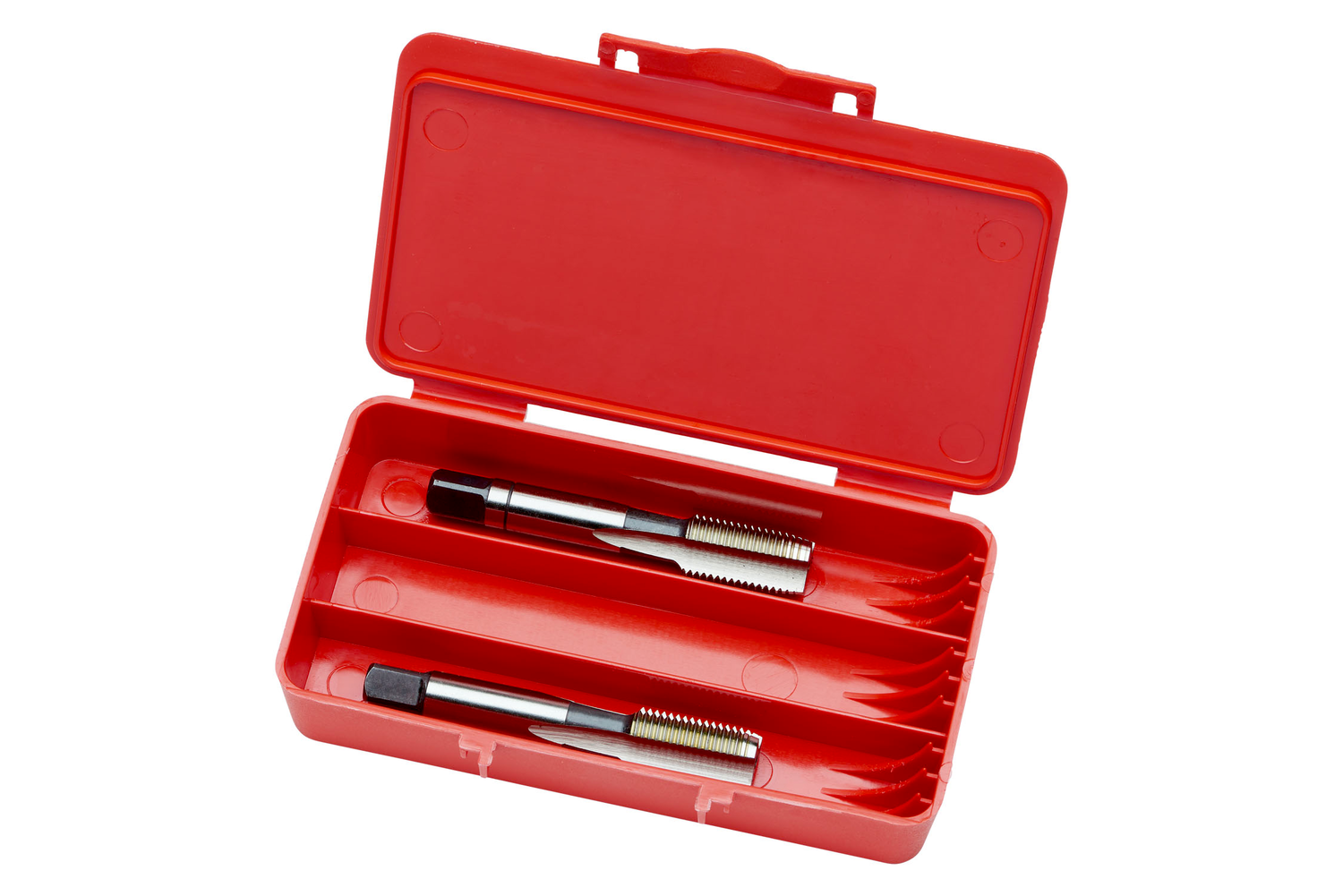

E1113/4NO9
UNF Hand Tap Straight Flute
Material ID: 5975579
Set of straight flute serial taps NO9 for Unified National Fine thread UNF 3/4 inch with 16 TPI and 2B class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 14.0 mm shank and 11.0 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and non-ferrous metals
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
