E0375/16

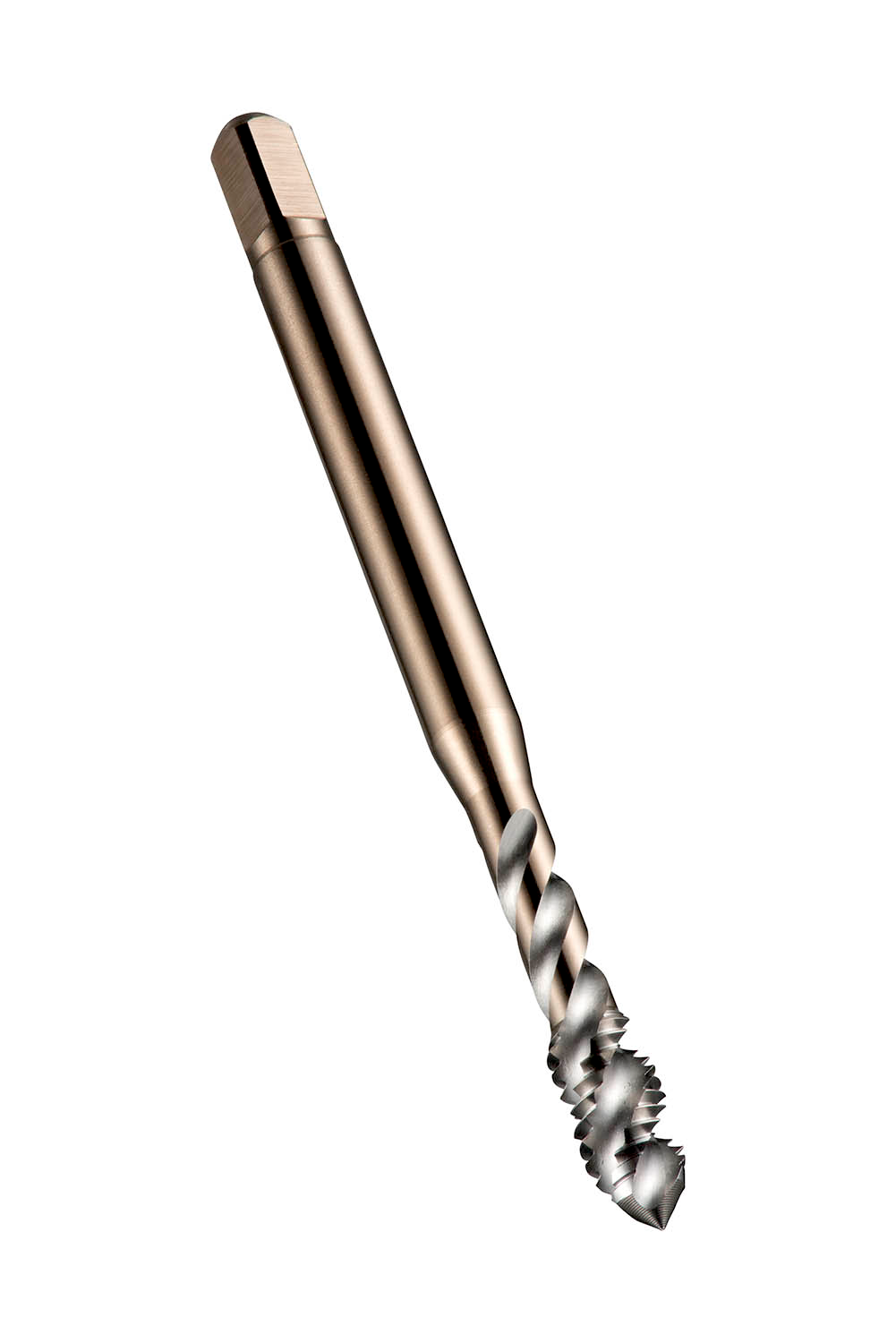

UNF Machine Tap Spiral Flute 45°

Material ID: 5974682


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180 inch shank and 0.2380 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974682
