Dormer-Pramet
E0711/4NO1
Material ID: 5974681
Sale price
$10.75 CAD
Regular price
$19.35 CAD
E0711/4NO1

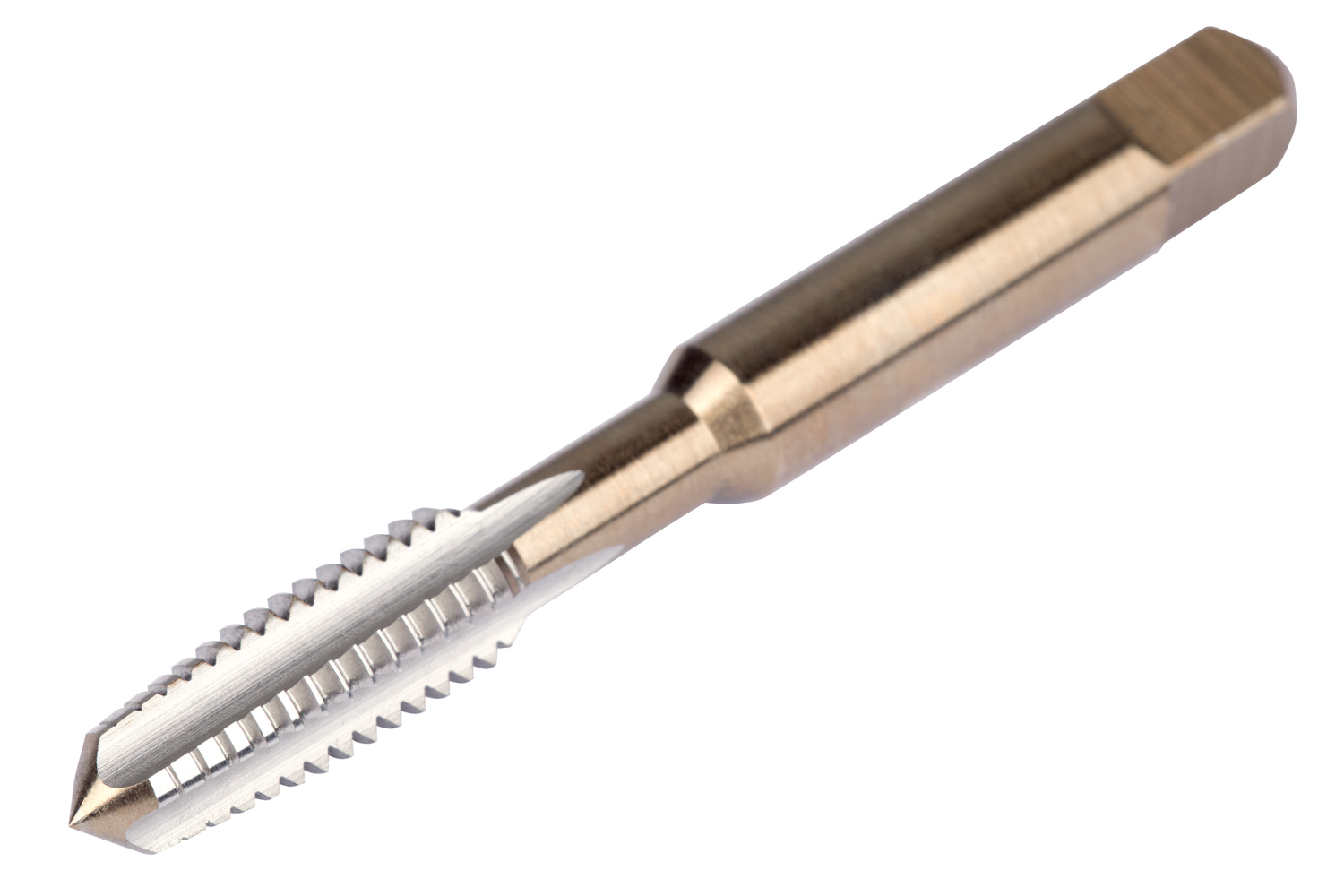

UNF Hand Tap Straight Flute
Material ID: 5974681
Straight flute hand tap NO1 with a 6-8xP taper lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
