Dormer-Pramet

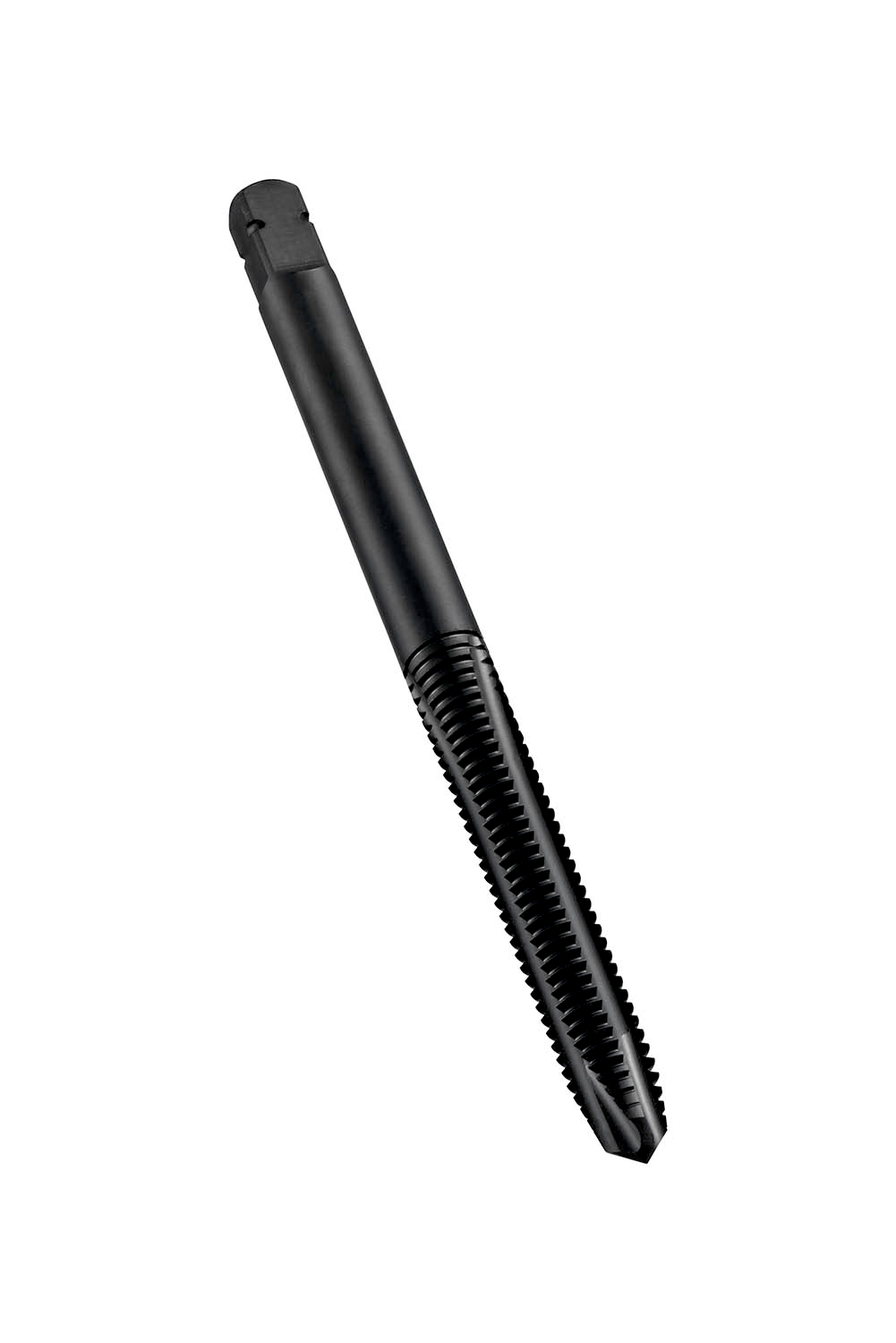

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3670 inch shank and 0.2750 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974577
