Dormer-Pramet

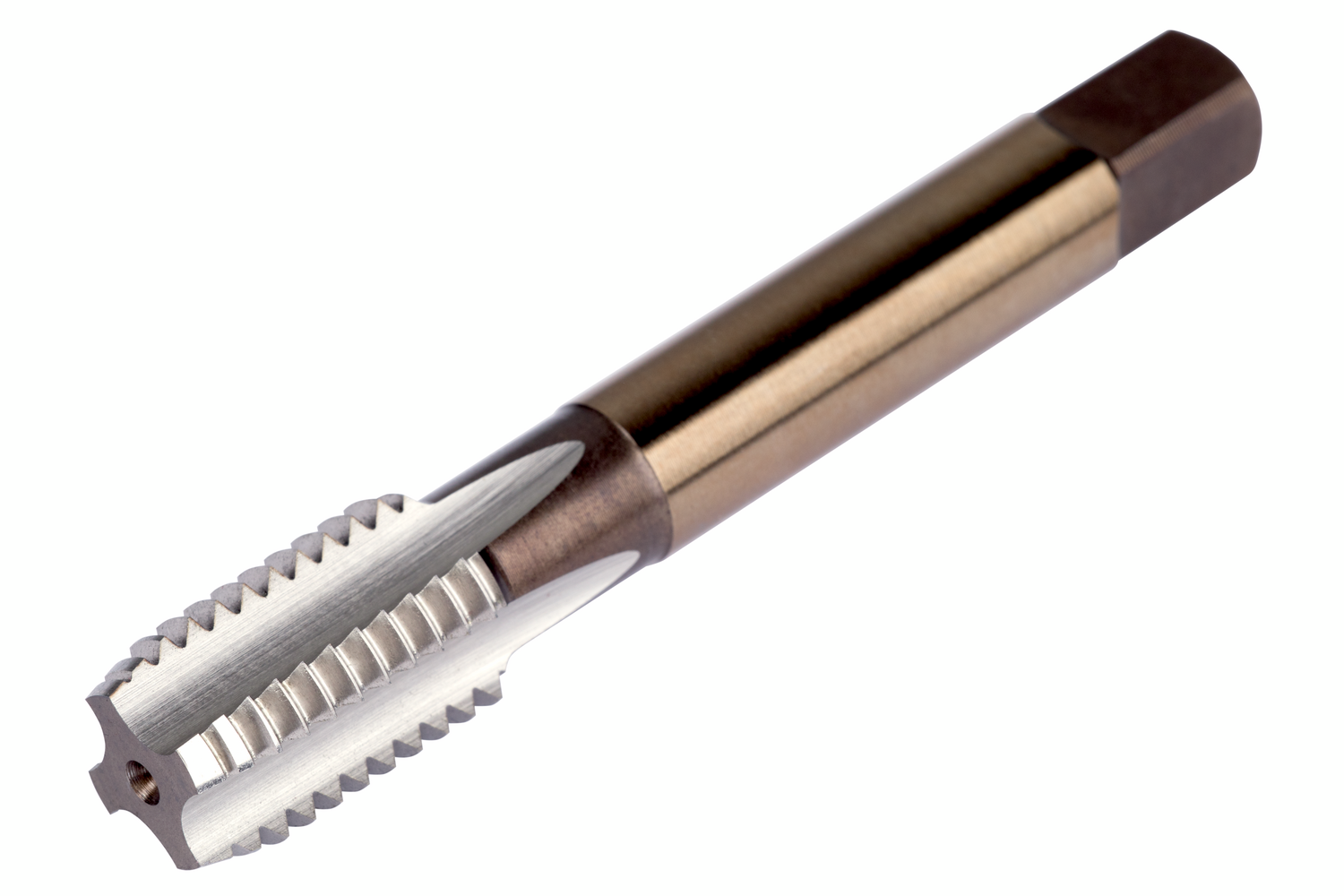

Straight flute hand tap NO3 with a 2-3xP plug lead, for Unified National Coarse thread UNC 7/16 inch with 14 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3230 inch shank and 0.2420 inch square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974303
