Dormer-Pramet
E0617/16NO1
Material ID: 5974298
Sale price
$25.36 CAD
Regular price
$45.65 CAD
E0617/16NO1

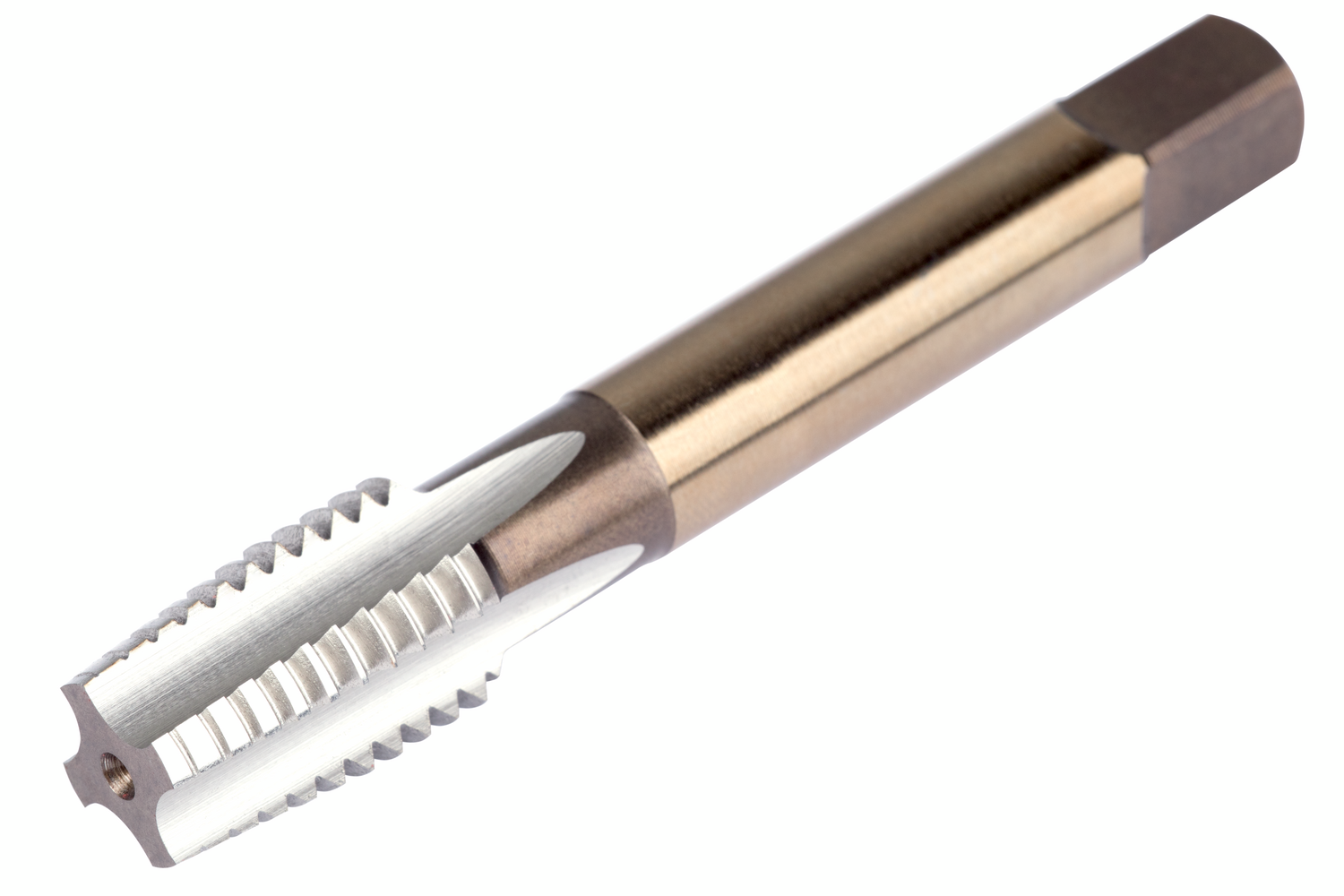

UNC Hand Tap Straight Flute
Material ID: 5974298
Straight flute hand tap NO1 with a 6-8xP taper lead, for Unified National Coarse thread UNC 7/16 inch with 14 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3230 inch shank and 0.2420 inch square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
