Dormer-Pramet

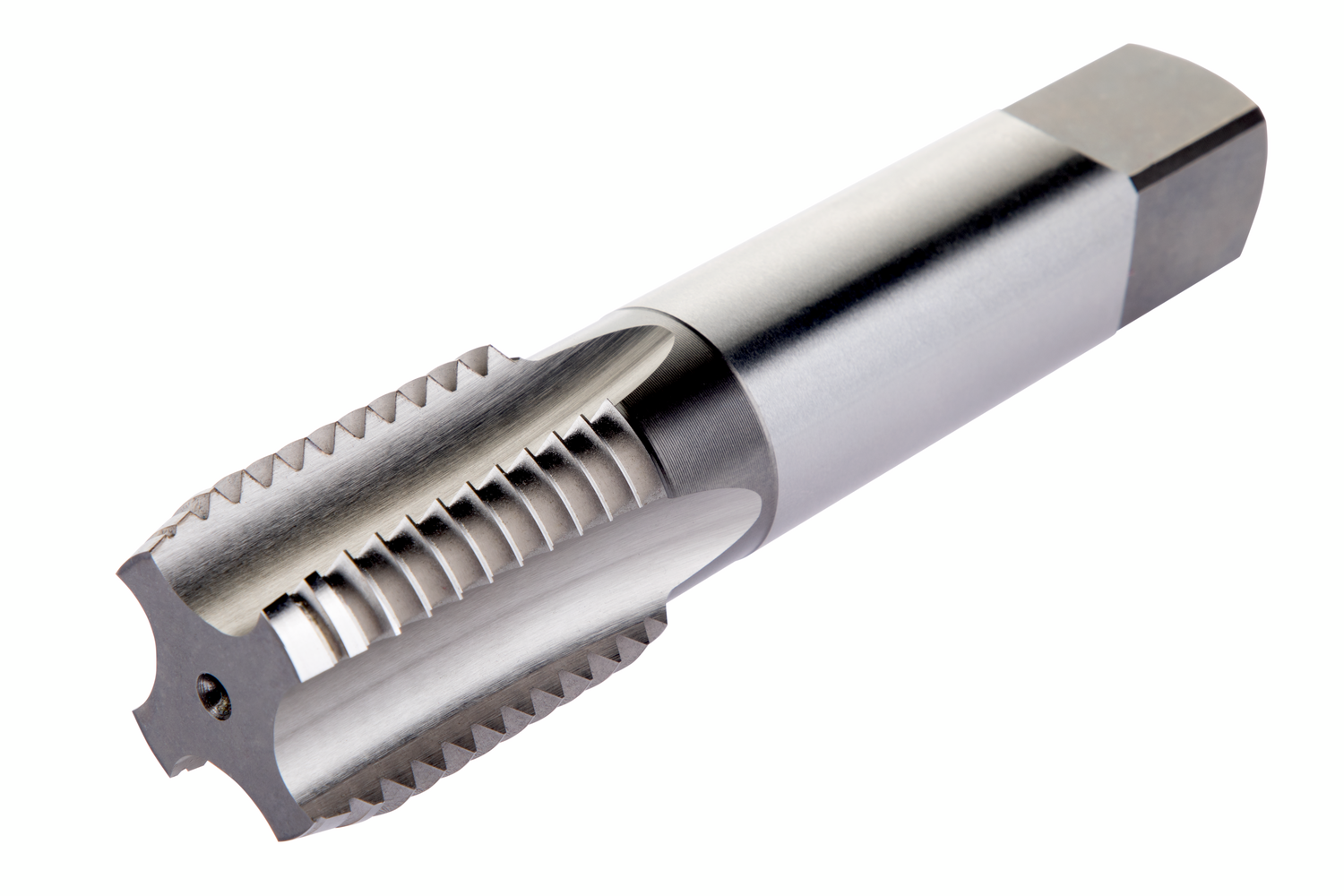

Straight flute hand tap NO3 with a 2-3xP plug lead, for Unified National Coarse thread UNC 1 inch with 8 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to ANSI standard with 0.8000 inch shank and 0.6000 inch square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974255
