Dormer-Pramet
EX213/4
Material ID: 5974245
Sale price
$206.67 CAD
Regular price
$372.00 CAD
EX213/4

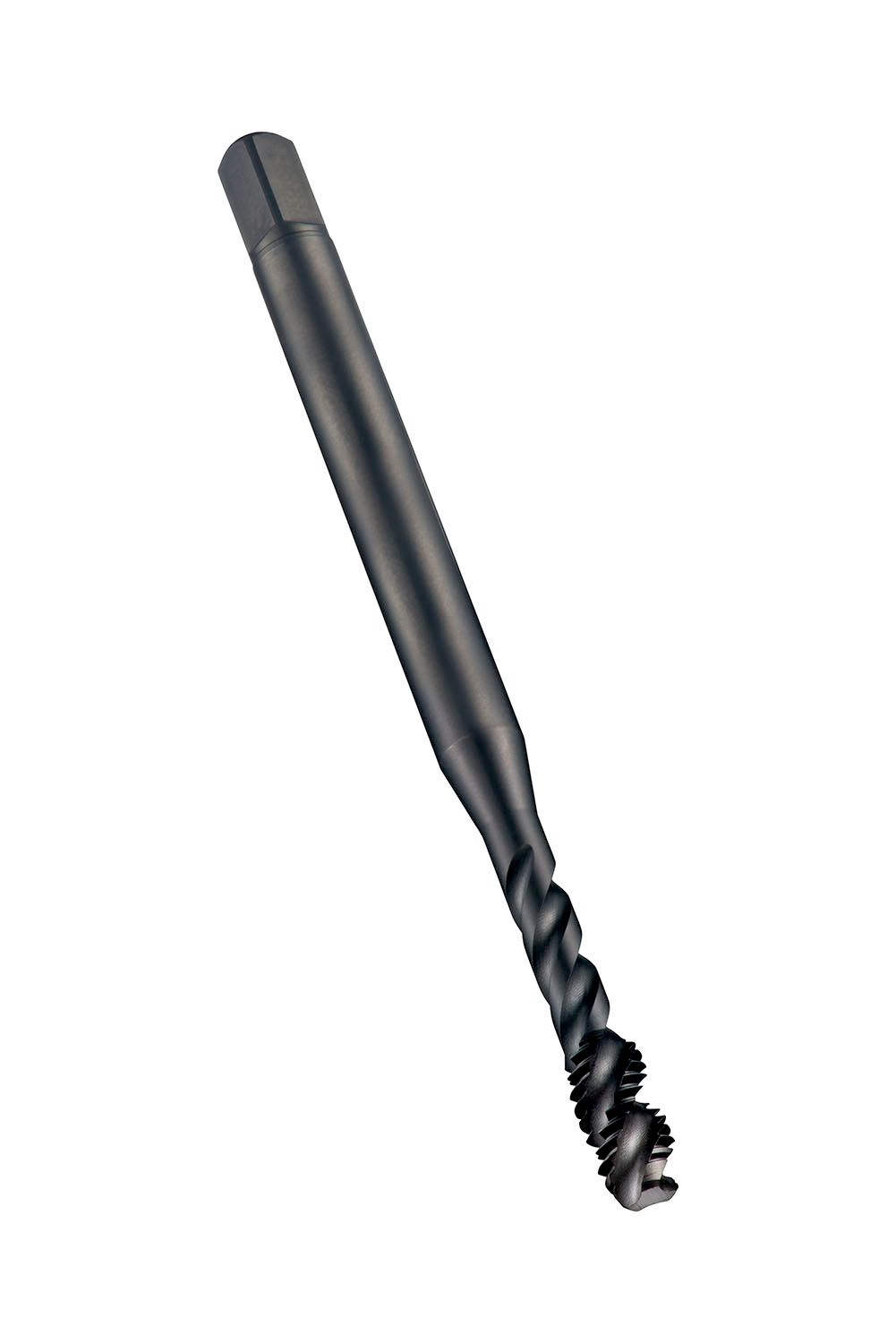

UNC Machine Tap Spiral Flute 45°
Material ID: 5974245
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
