SEARCH BY PRODUCT SKU / EDP

Back to All Products
EX2112-24

EX2112-24

$55.56 CAD $100.00 CAD
Skip to product information
EX2112-24
EX2112-24

Dormer-Pramet

EX2112-24

Material ID: 5974242

$55.56 CAD $100.00 CAD

EX2112-24

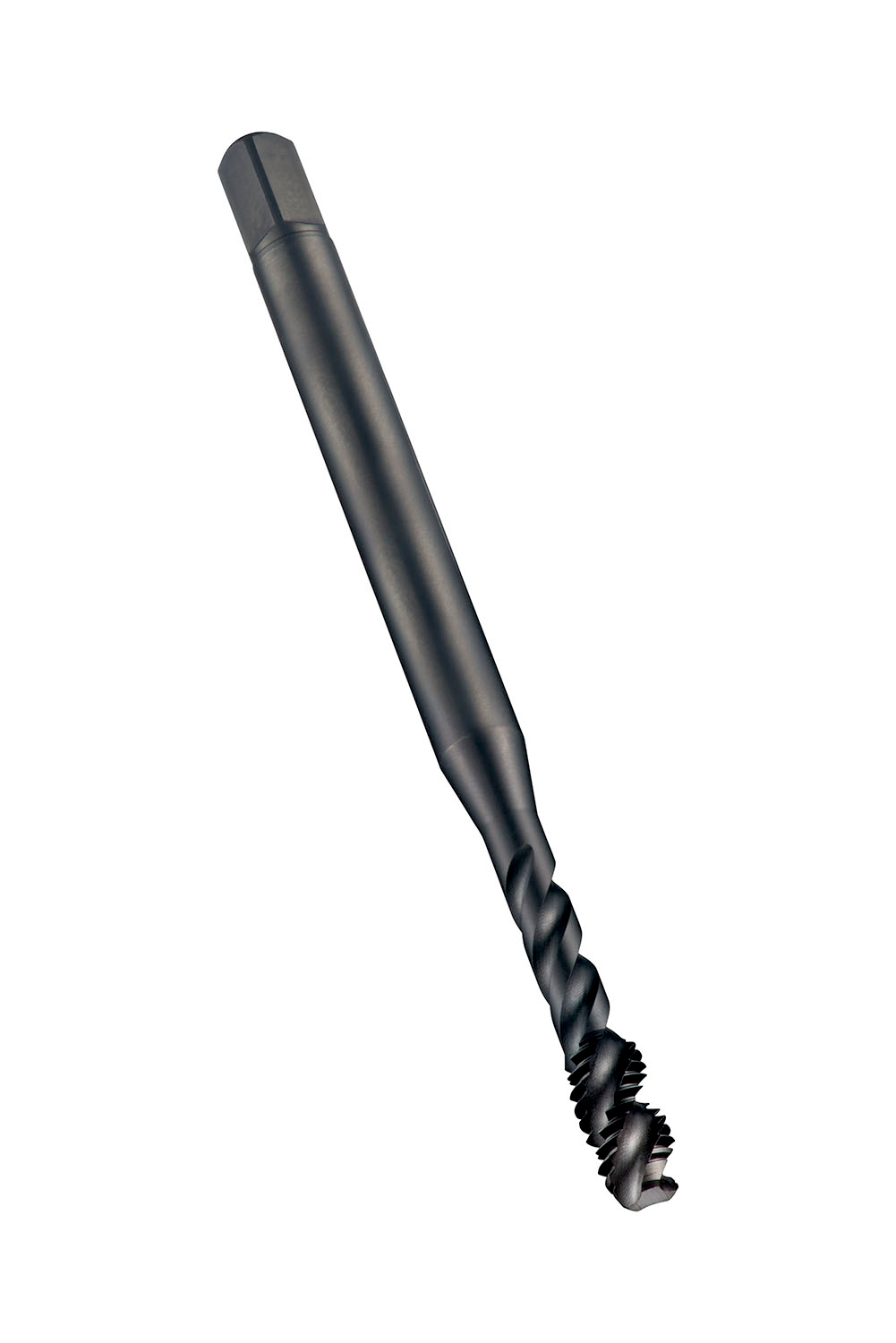

UNC Machine Tap Spiral Flute 45°

Material ID: 5974242


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 12 with 24 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974242
