E0267/8

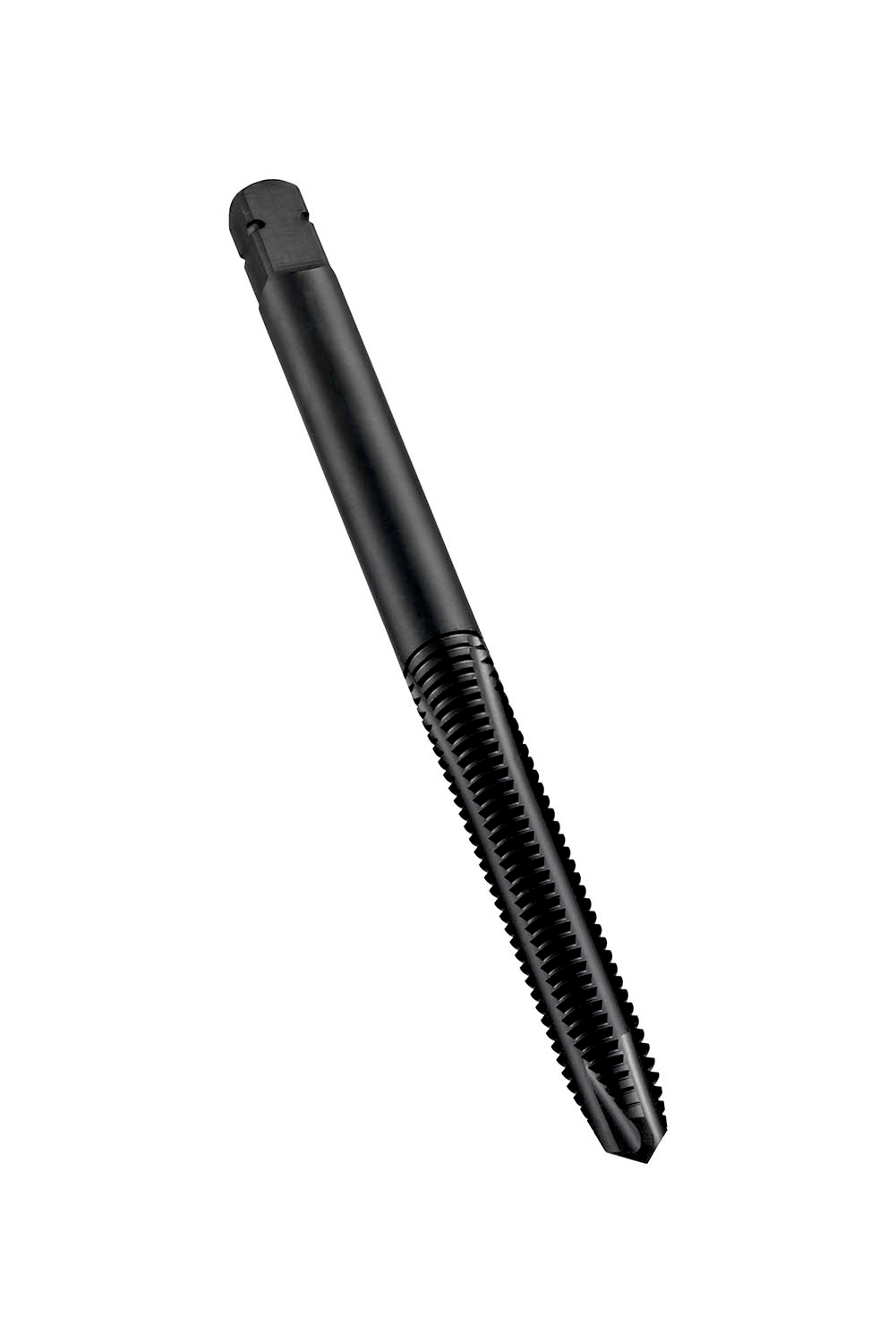

UNC Machine Tap Spiral Point

Material ID: 5974192


Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 7/8 inch with 9 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to ANSI standard with 0.6970 inch shank and 0.5230 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974192
