E0273/8
E0273/8

Dormer-Pramet

E0273/8

Material ID: 5974168

$43.39 CAD $78.10 CAD

E0273/8

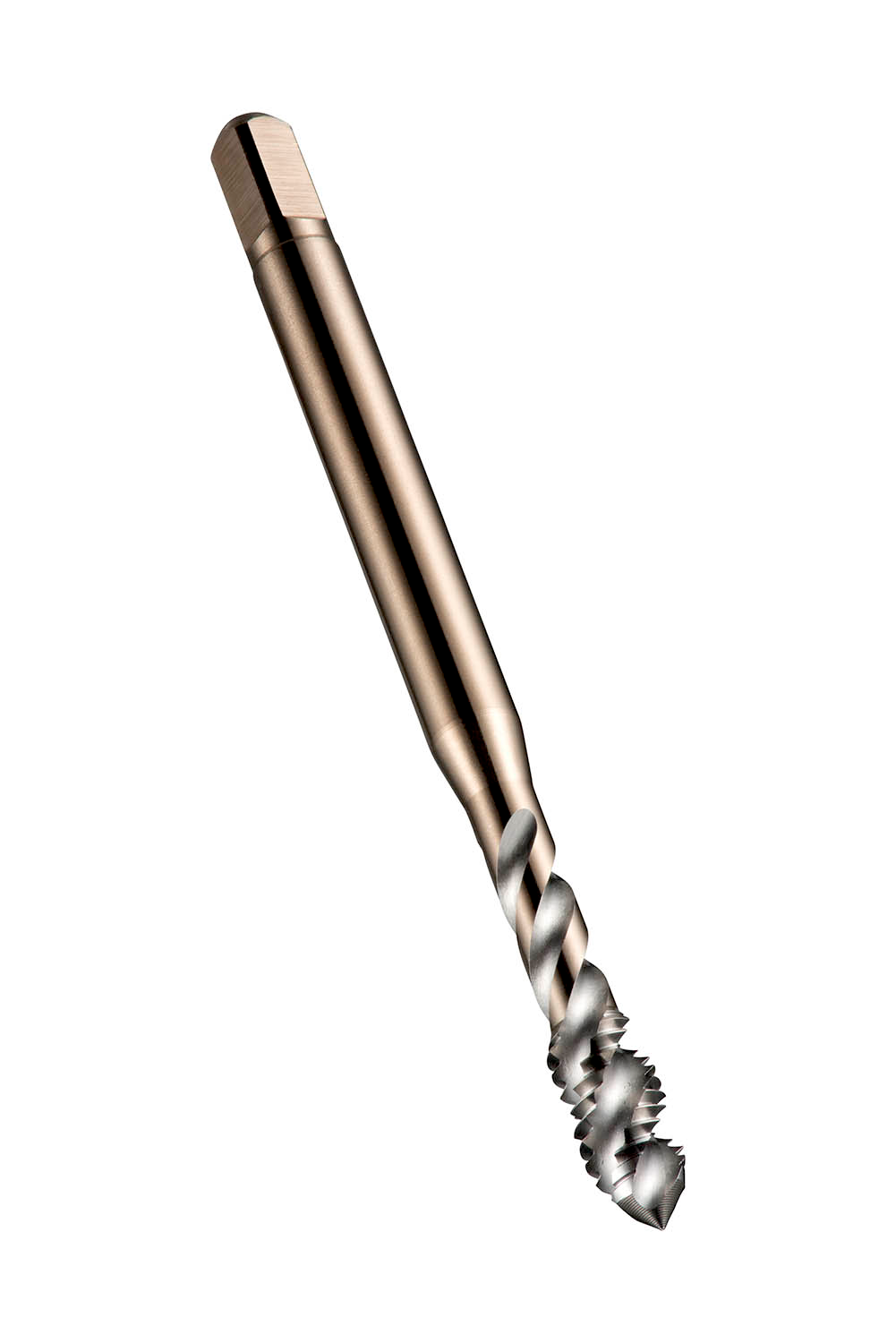

UNC Machine Tap Spiral Flute 45°

Material ID: 5974168


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974168
