E0289/16

E0289/16

$128.33 CAD $231.00 CAD
Skip to product information
E0289/16
E0289/16

Dormer-Pramet

E0289/16

Material ID: 5974061

$128.33 CAD $231.00 CAD

E0289/16

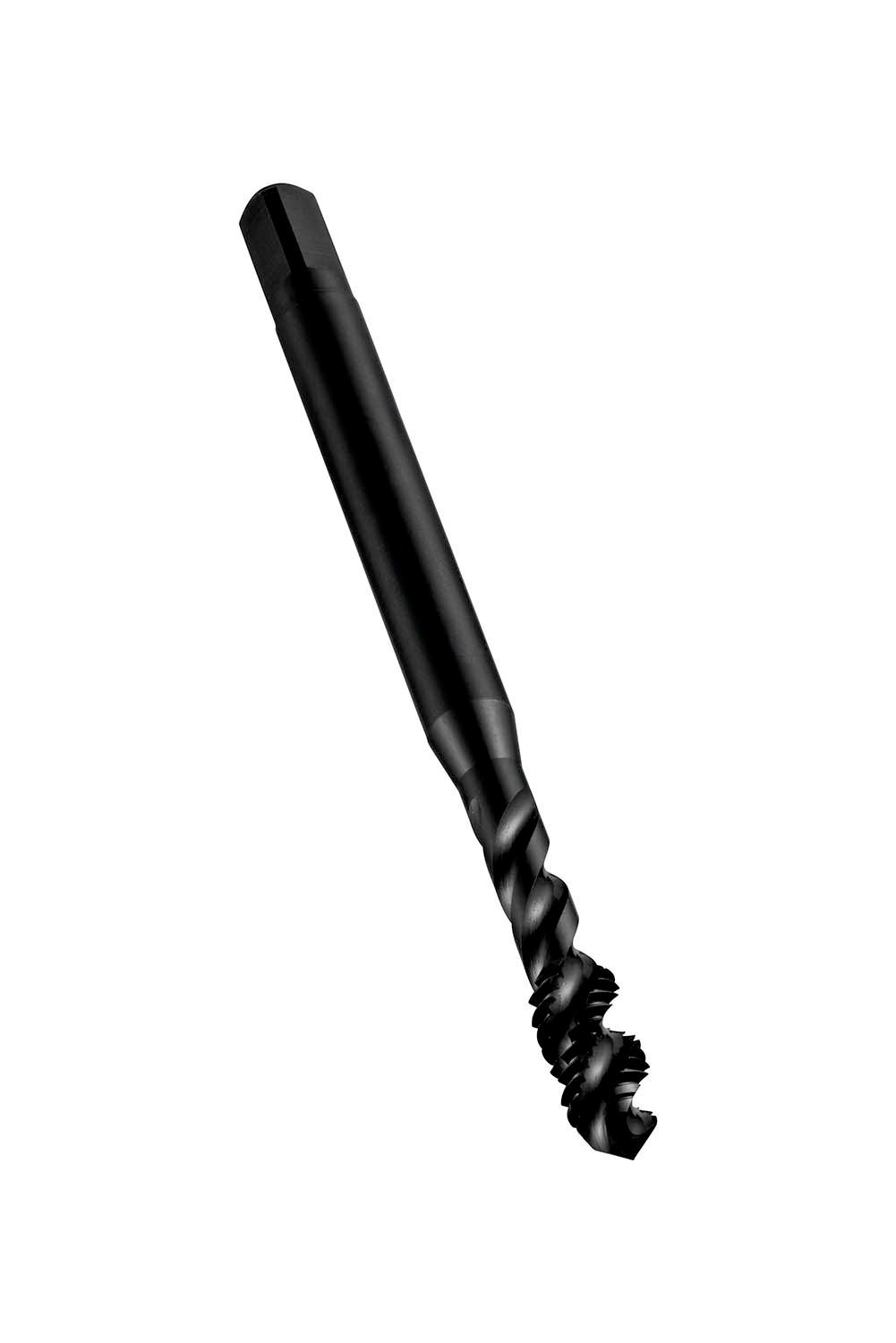

UNC Machine Tap Spiral Flute 45°

Material ID: 5974061


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 9/16 inch with 12 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4290 inch shank and 0.3220 inch square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974061
