Dormer-Pramet

E0253/8

Material ID: 5974039

$18.39 CAD $33.10 CAD

E0253/8

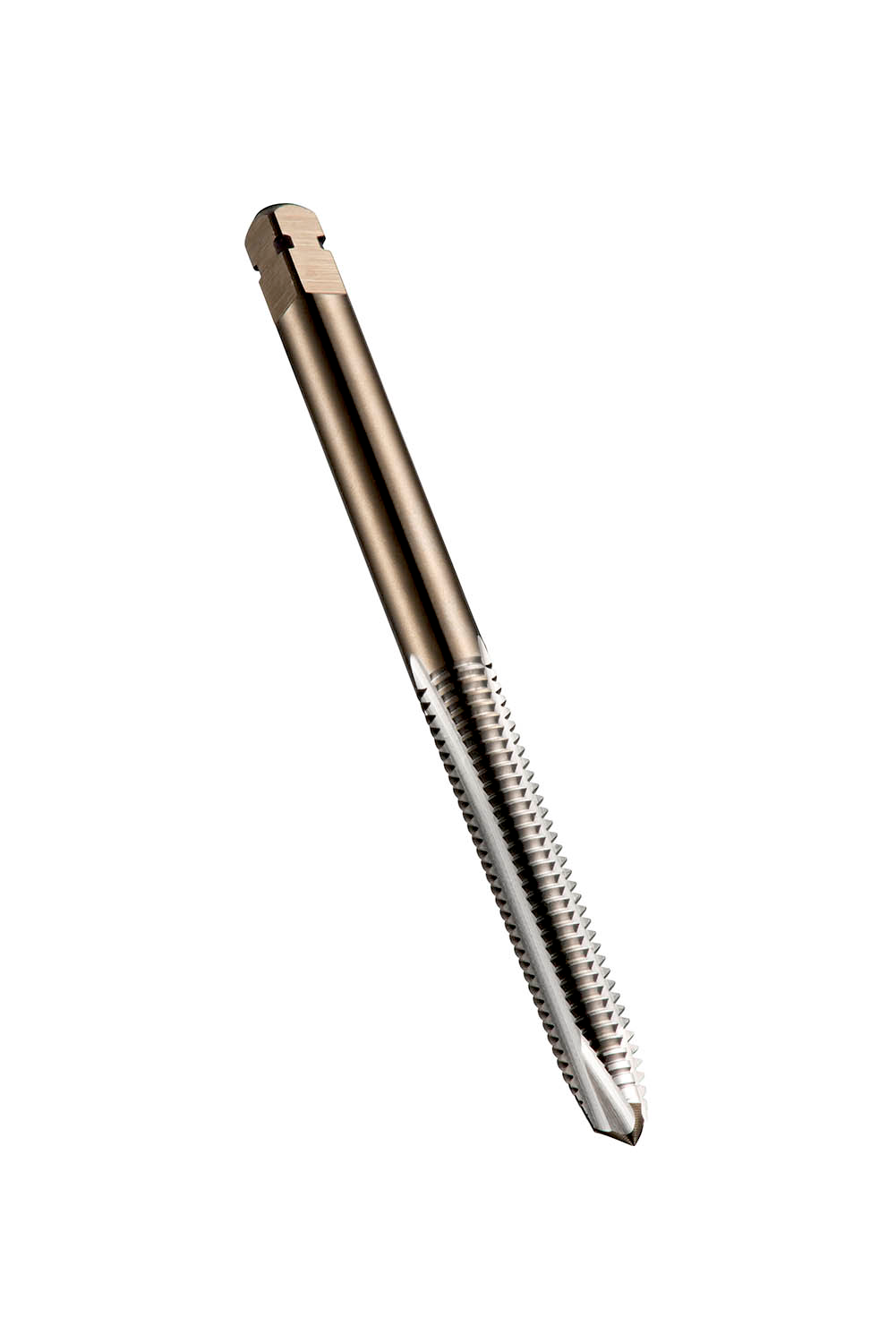

UNC Machine Tap Spiral Point

Material ID: 5974039


Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974039
