E0277/16

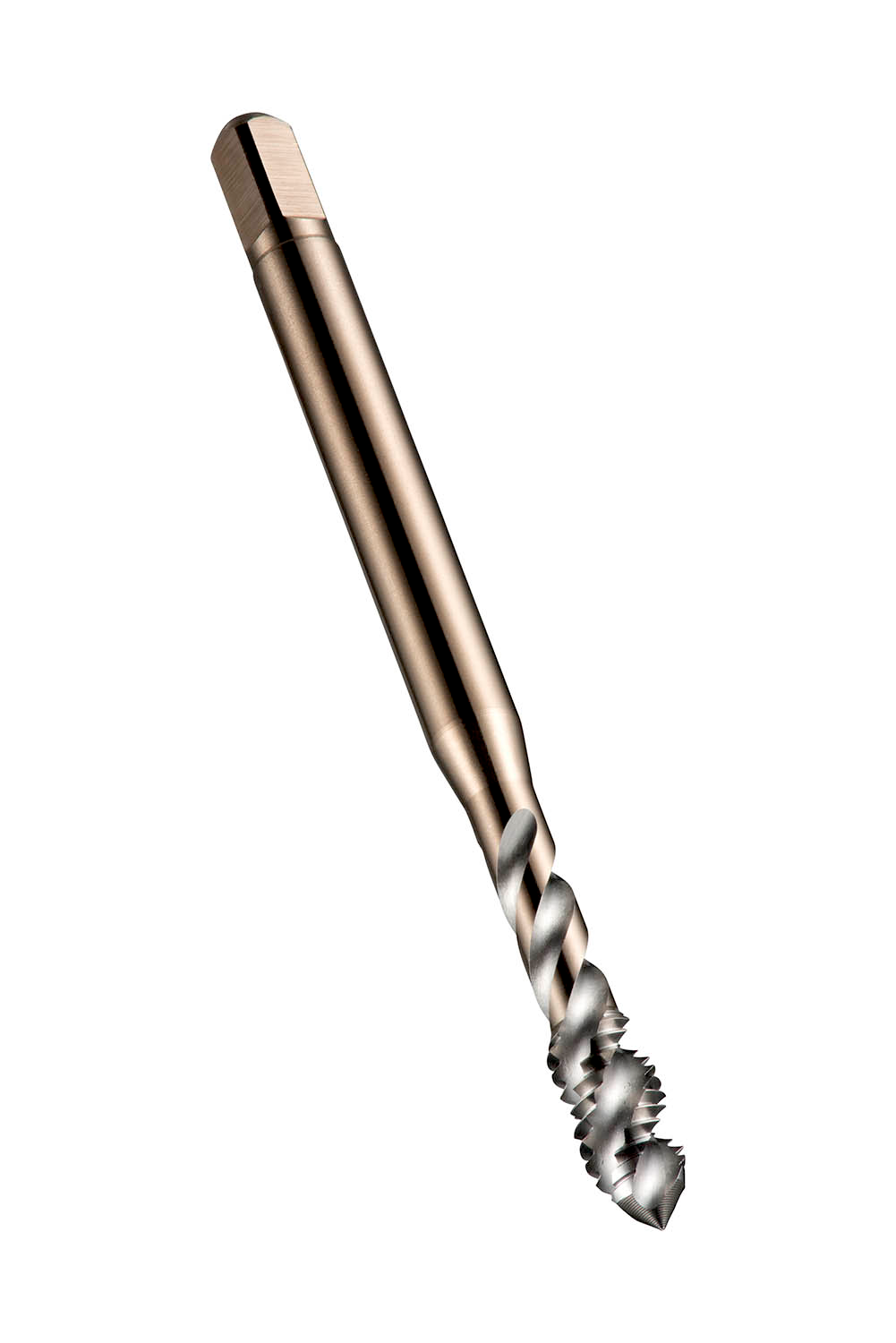

UNC Machine Tap Spiral Flute 45°

Material ID: 5974015


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 7/16 inch with 14 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3230 inch shank and 0.2420 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5974015
