Dormer-Pramet

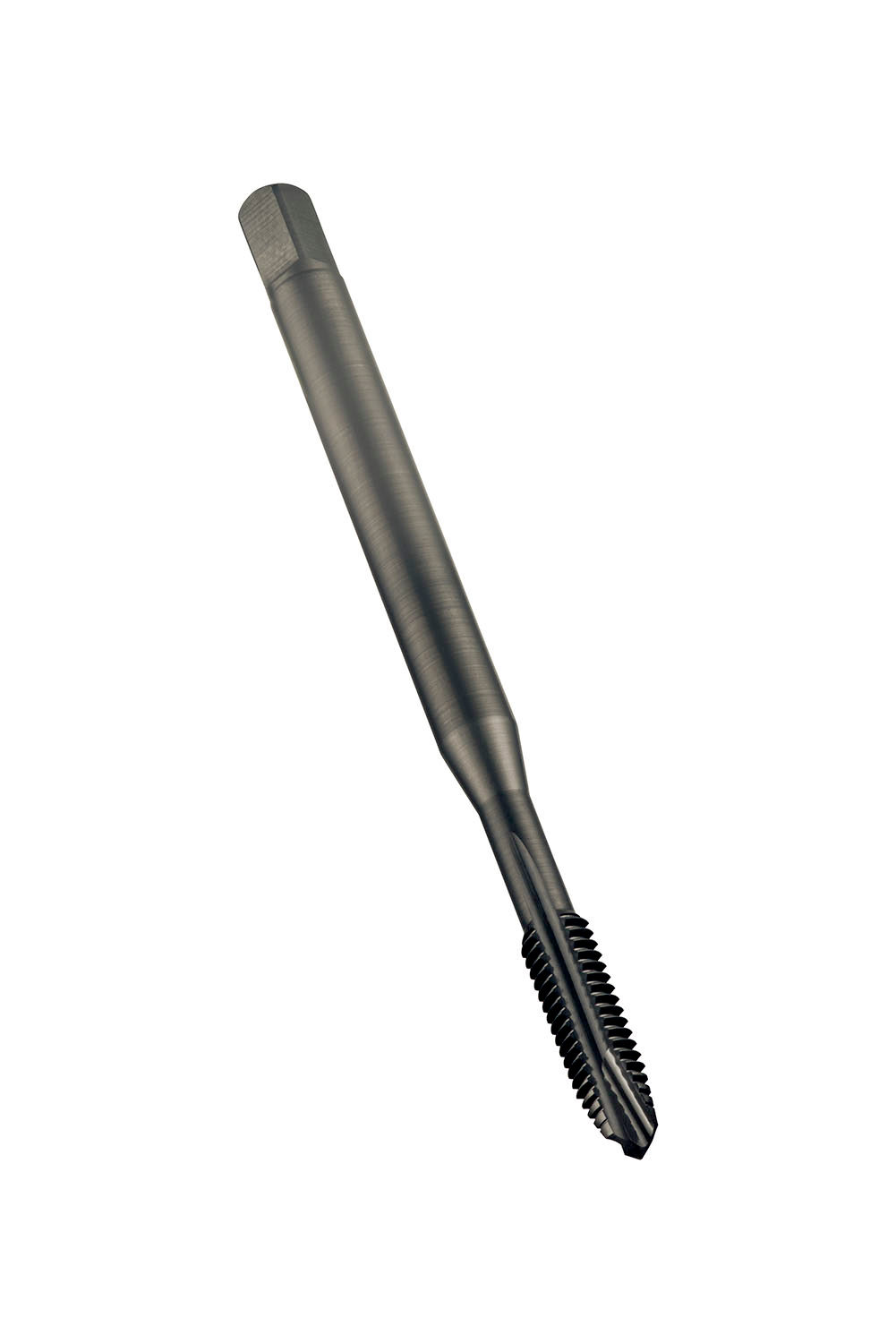

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Standard Pipe thread G 1 inch with 11 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 25.0 mm shank and 20.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5973963
