Dormer-Pramet
EP313/8
Material ID: 5973899
Sale price
$83.33 CAD
Regular price
$150.00 CAD
EP313/8

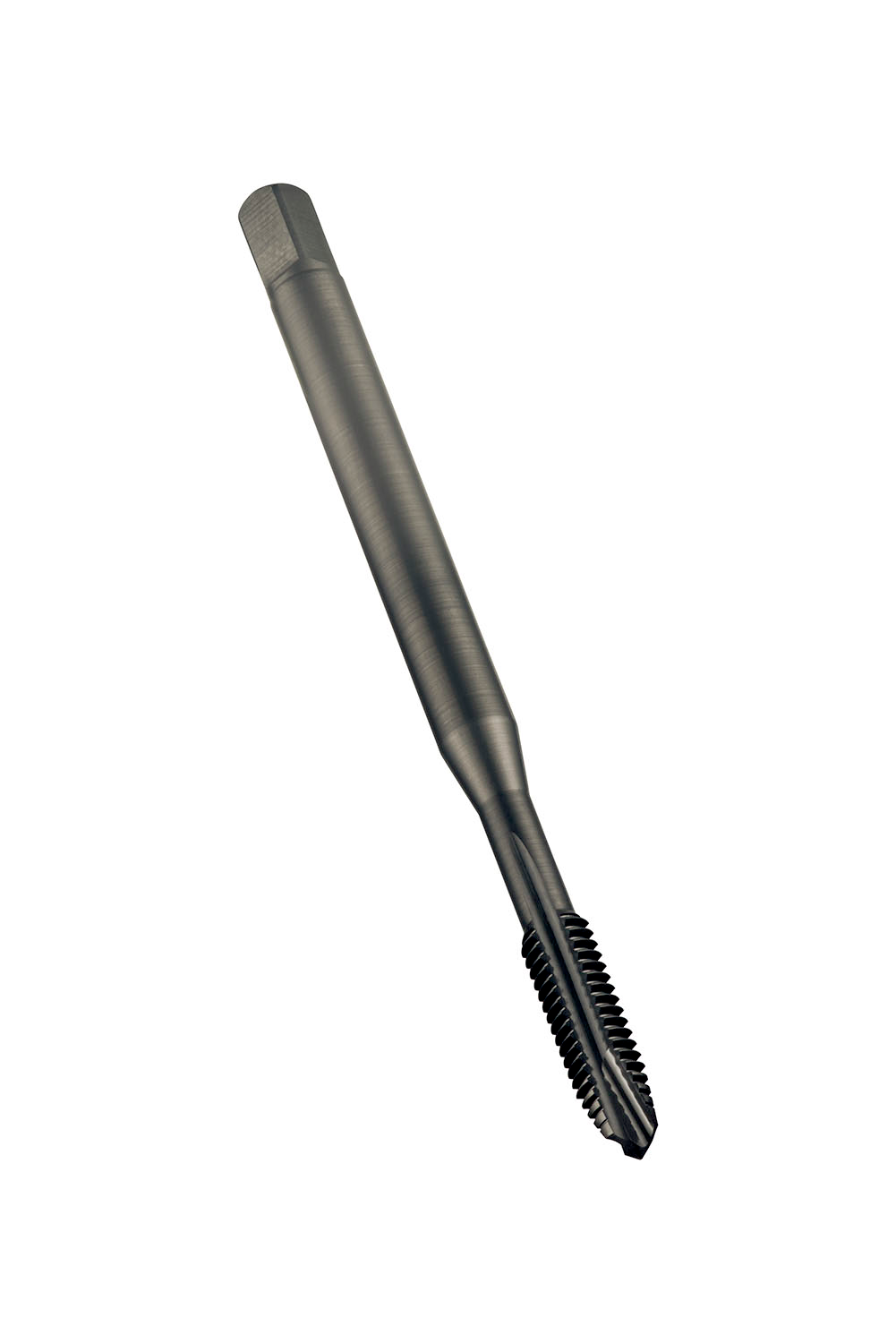

UNF Machine Tap Spiral Point
Material ID: 5973899
Spiral point tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
