Dormer-Pramet
E006M14
Material ID: 5973832
Sale price
$72.78 CAD
Regular price
$131.00 CAD
E006M14

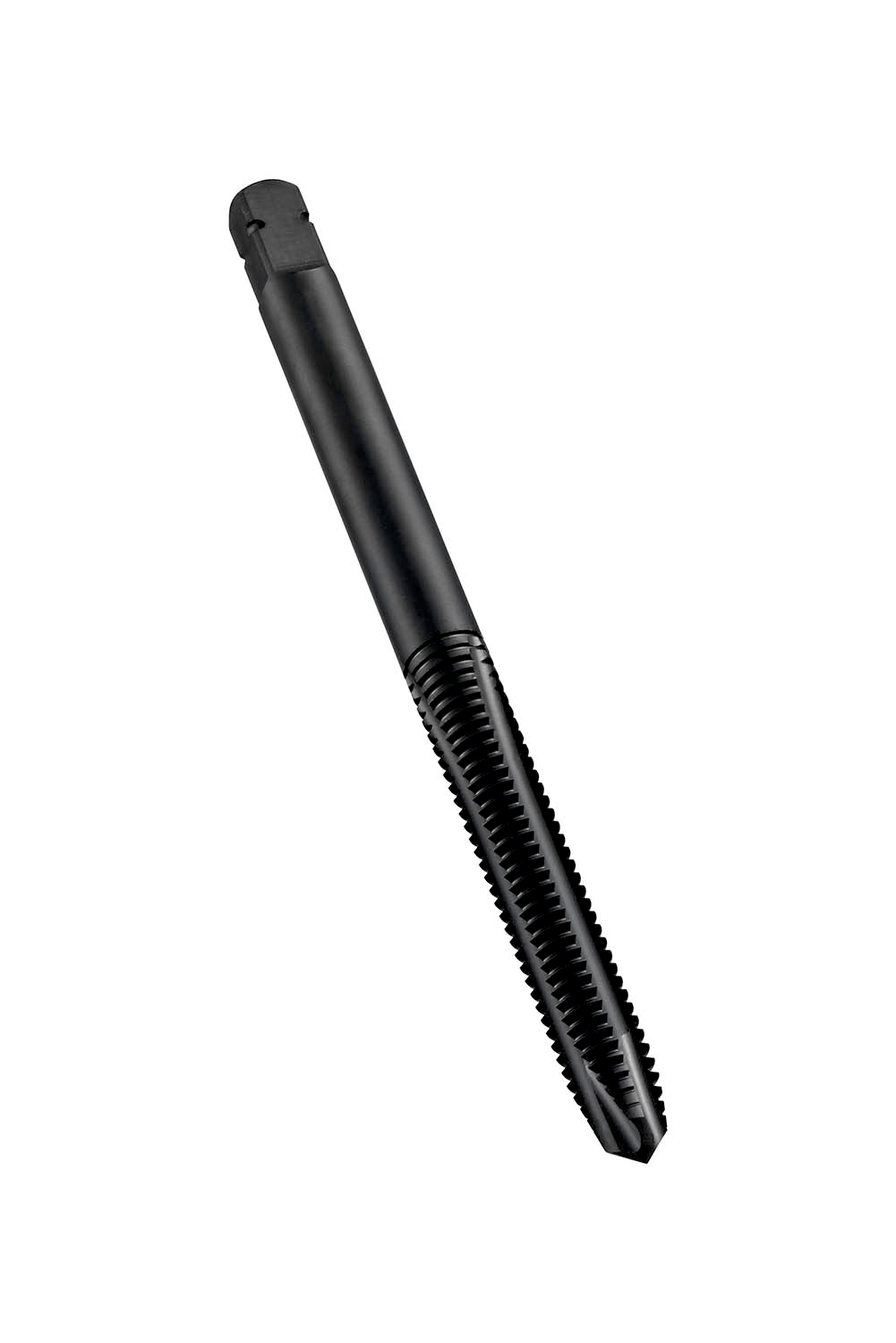

M Machine Tap Spiral Point
Material ID: 5973832
Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.4290 inch shank and 0.3220 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
