E007M6

E007M6

$33.83 CAD $60.90 CAD
Skip to product information
E007M6
E007M6

Dormer-Pramet

E007M6

Material ID: 5973808

$33.83 CAD $60.90 CAD

E007M6

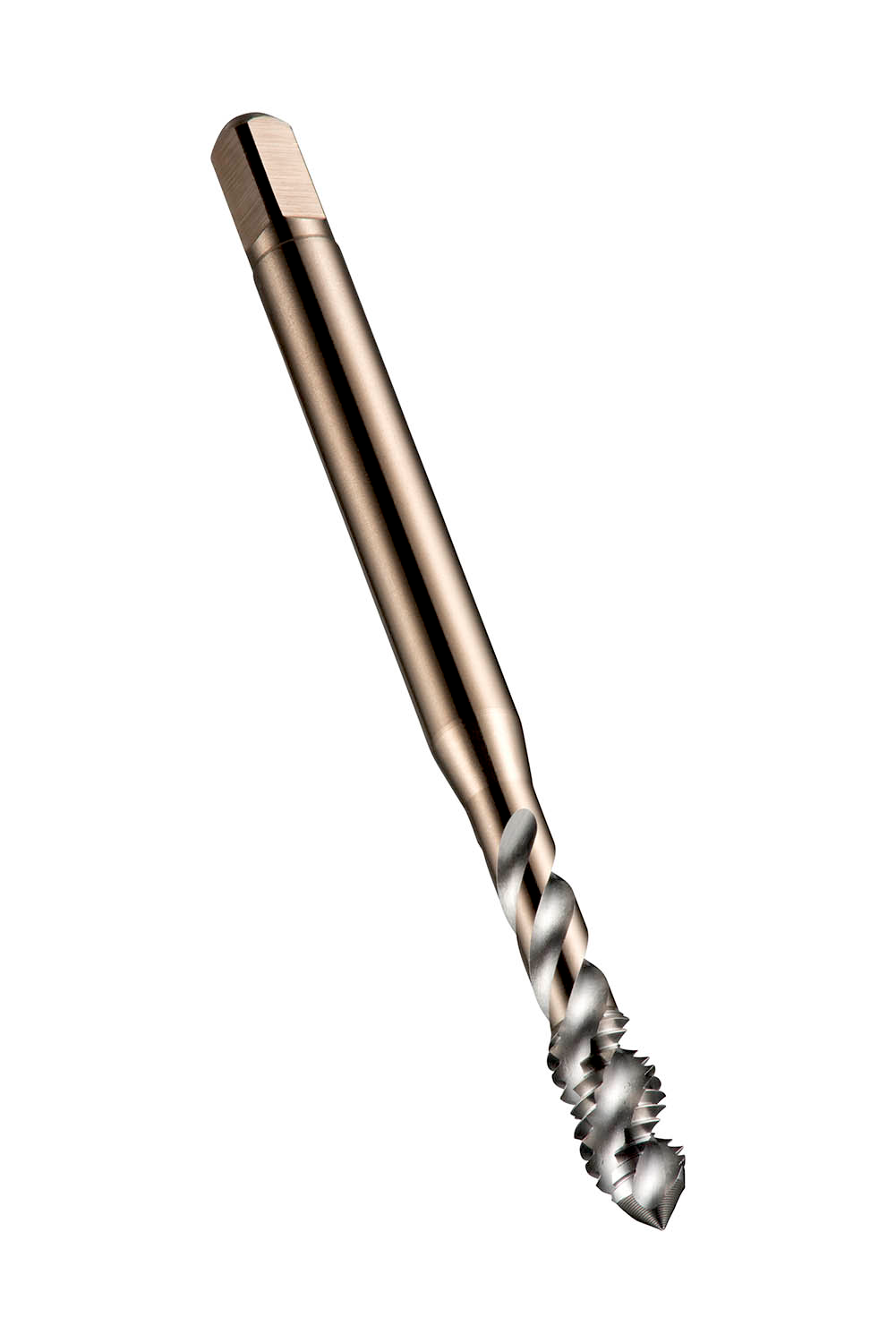

M Machine Tap Spiral Flute 45°

Material ID: 5973808


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5973808
