Dormer-Pramet
E001M1.6
Material ID: 5973804
Sale price
$49.25 CAD
Regular price
$88.20 CAD
E001M1.6

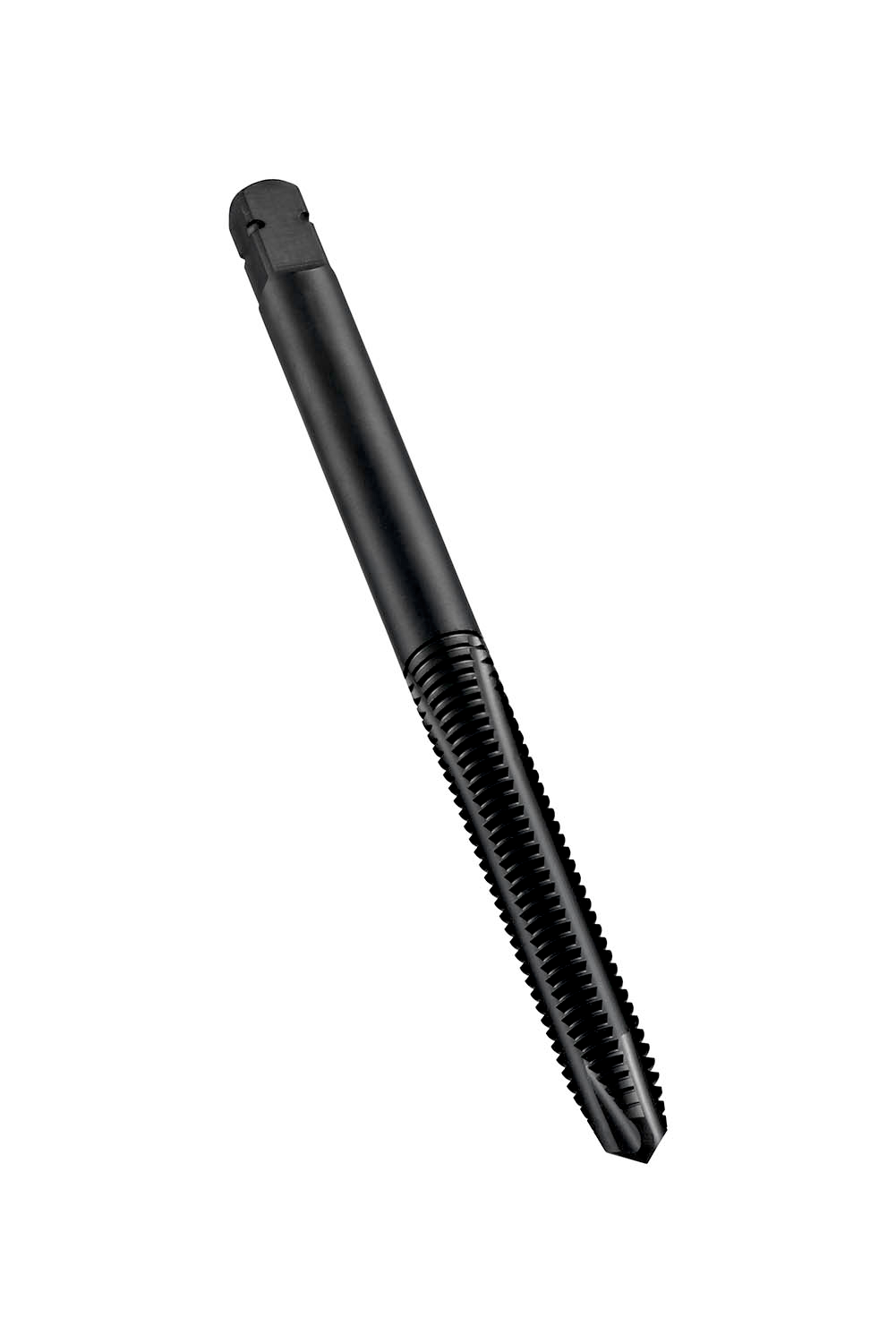

M Machine Tap Spiral Point
Material ID: 5973804
Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M1.6 with 0.35 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5 mm shank and 2.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
