Dormer-Pramet

EX10M5X.50

Material ID: 5973721

$53.72 CAD $96.70 CAD

EX10M5X.50

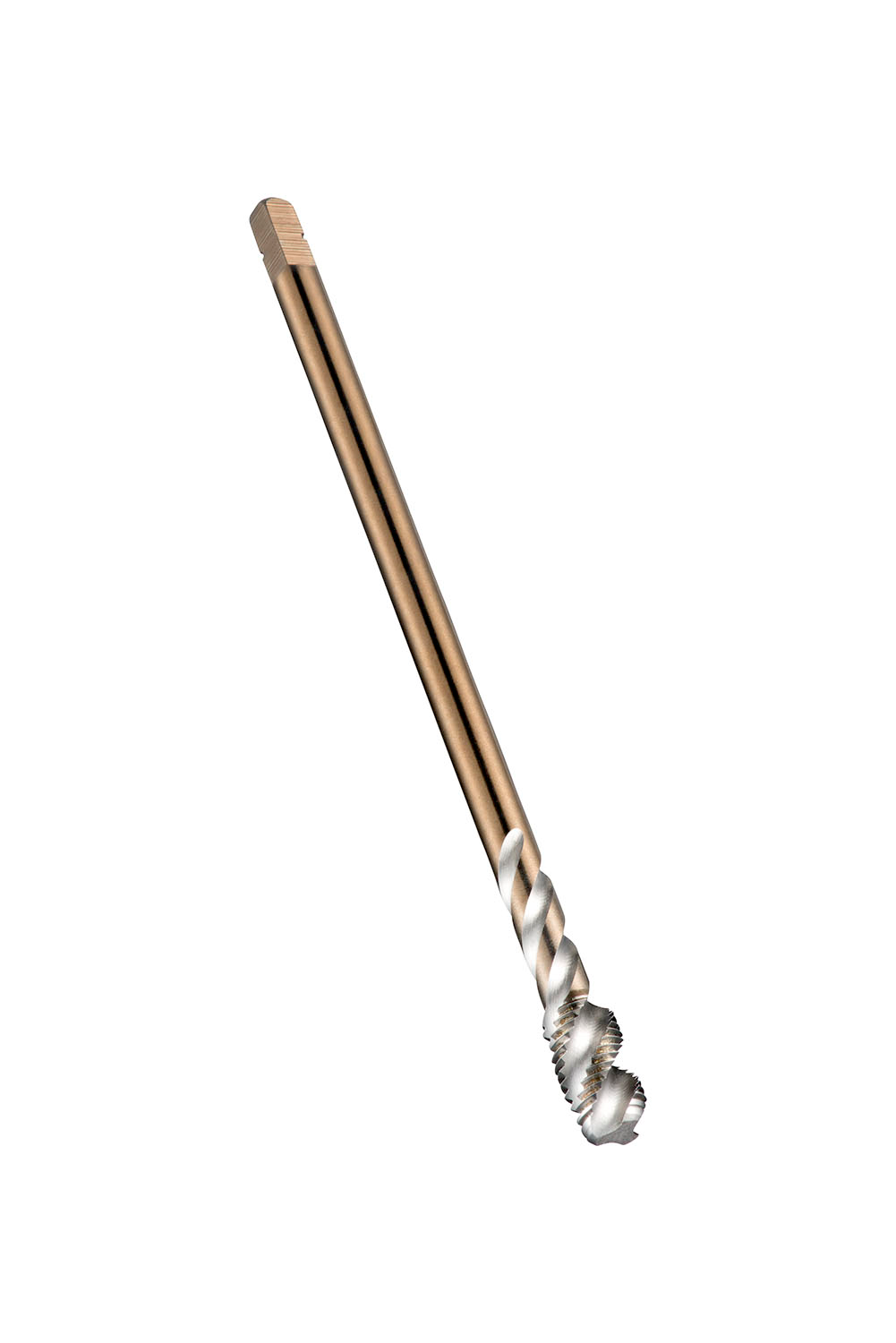

MF Machine Tap Spiral Flute 45°

Material ID: 5973721


Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M5 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5973721
