Dormer-Pramet
EP11M22X1.5
Material ID: 5973637
Sale price
$190.00 CAD
Regular price
$342.00 CAD
EP11M22X1.5

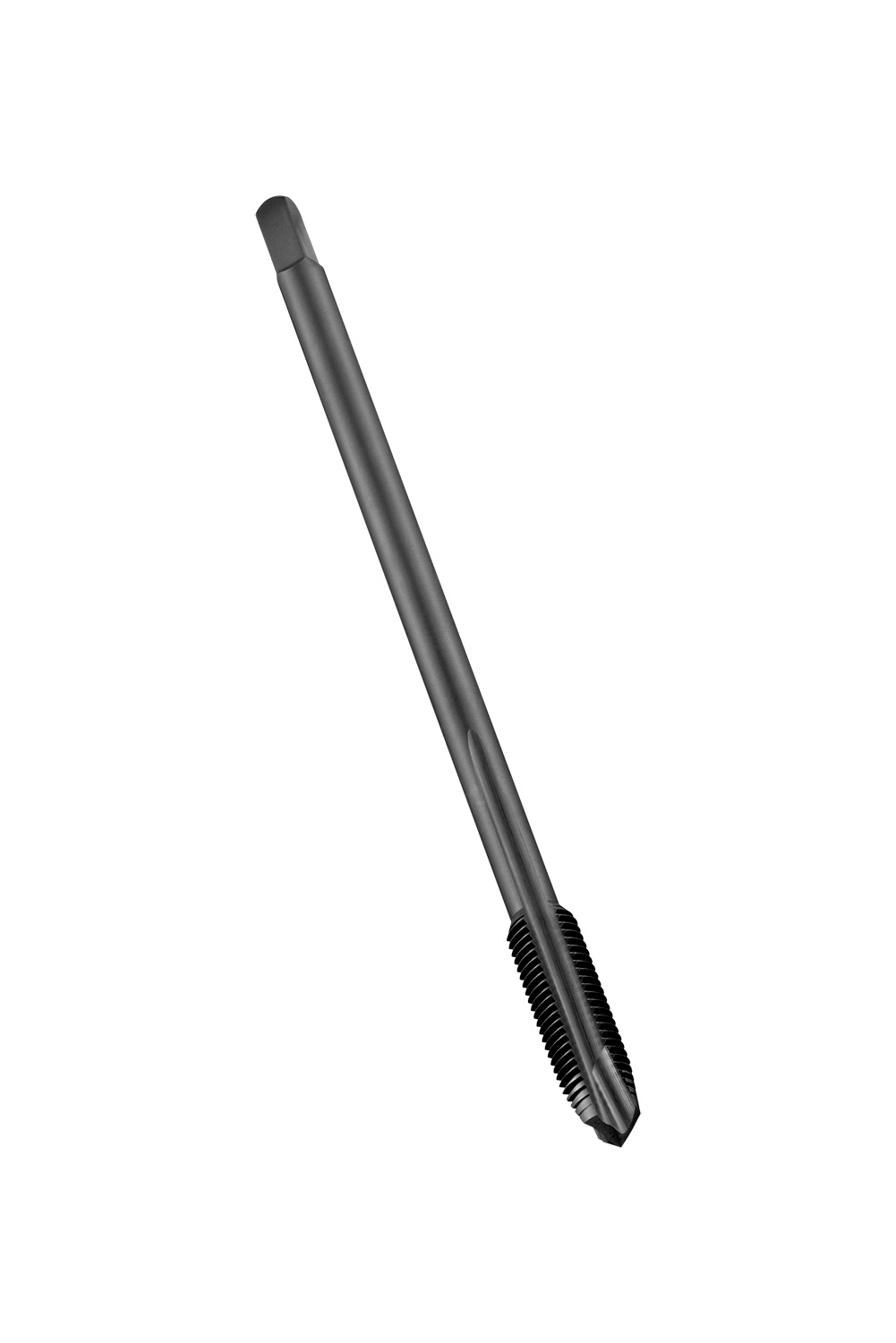

MF Machine Tap Spiral Point
Material ID: 5973637
Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M22 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
