Dormer-Pramet

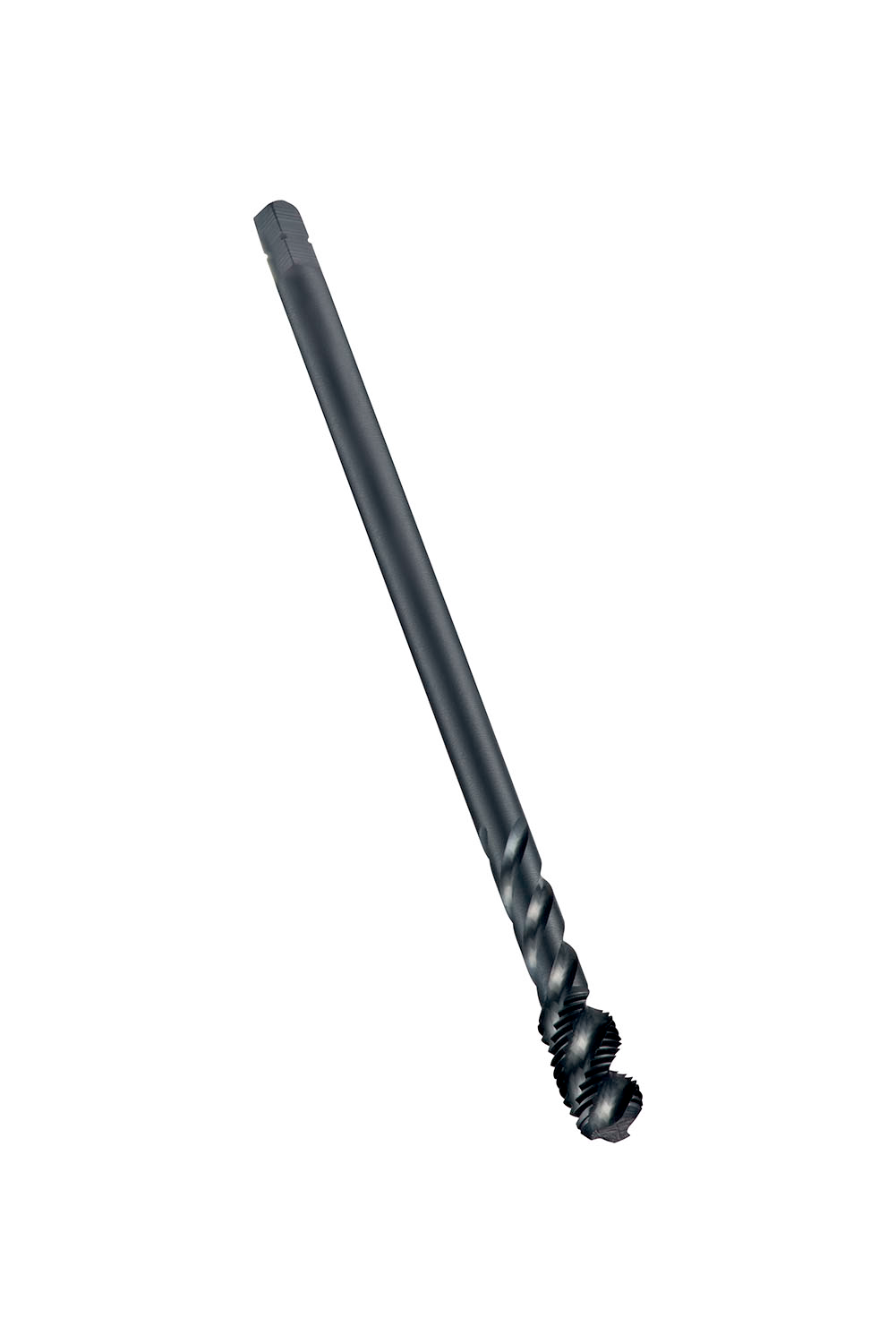

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M24 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5973605
