Dormer-Pramet

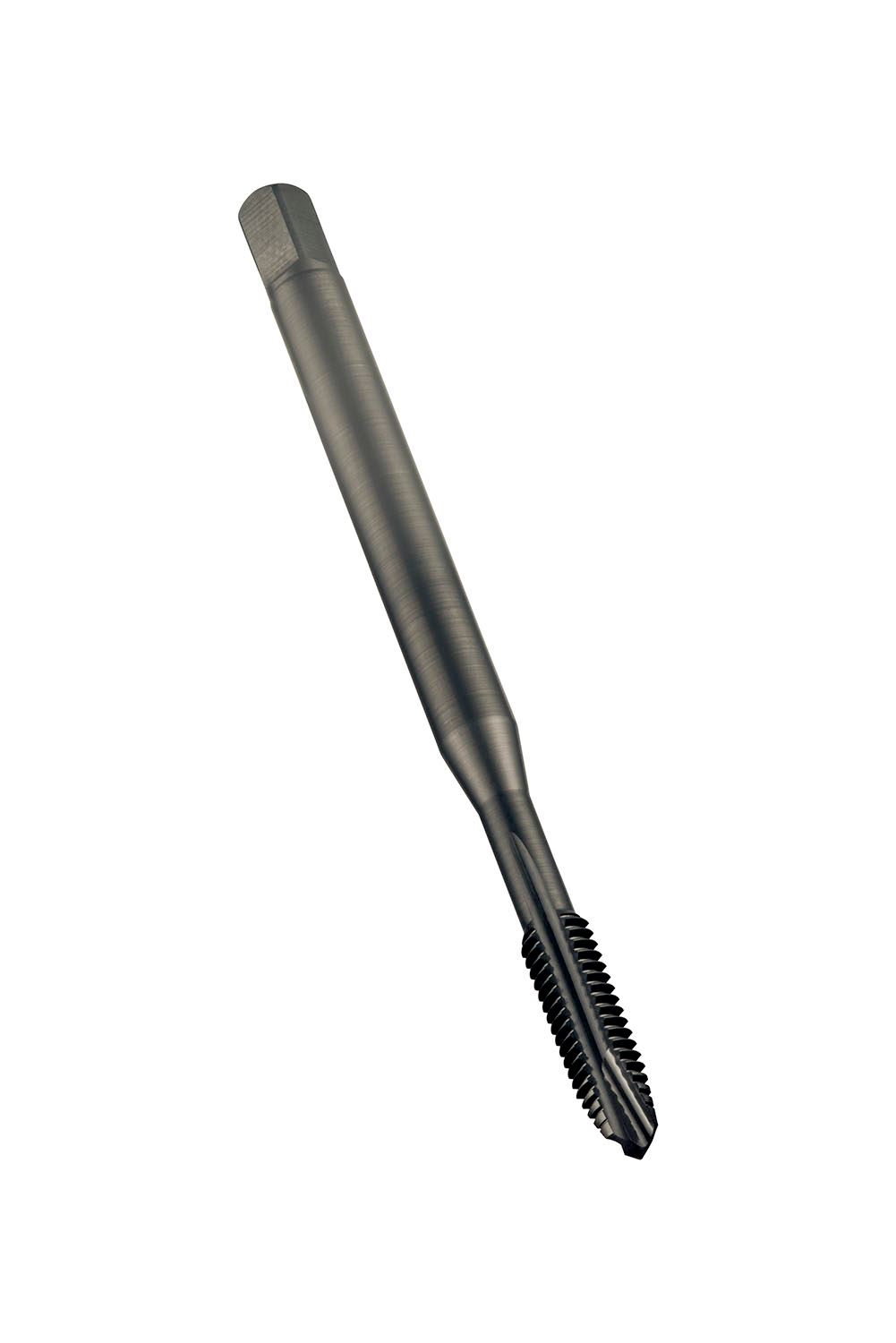

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5973455
