Dormer-Pramet
EP01M5DIN376
Material ID: 5973436
Sale price
$37.72 CAD
Regular price
$67.90 CAD
EP01M5DIN376

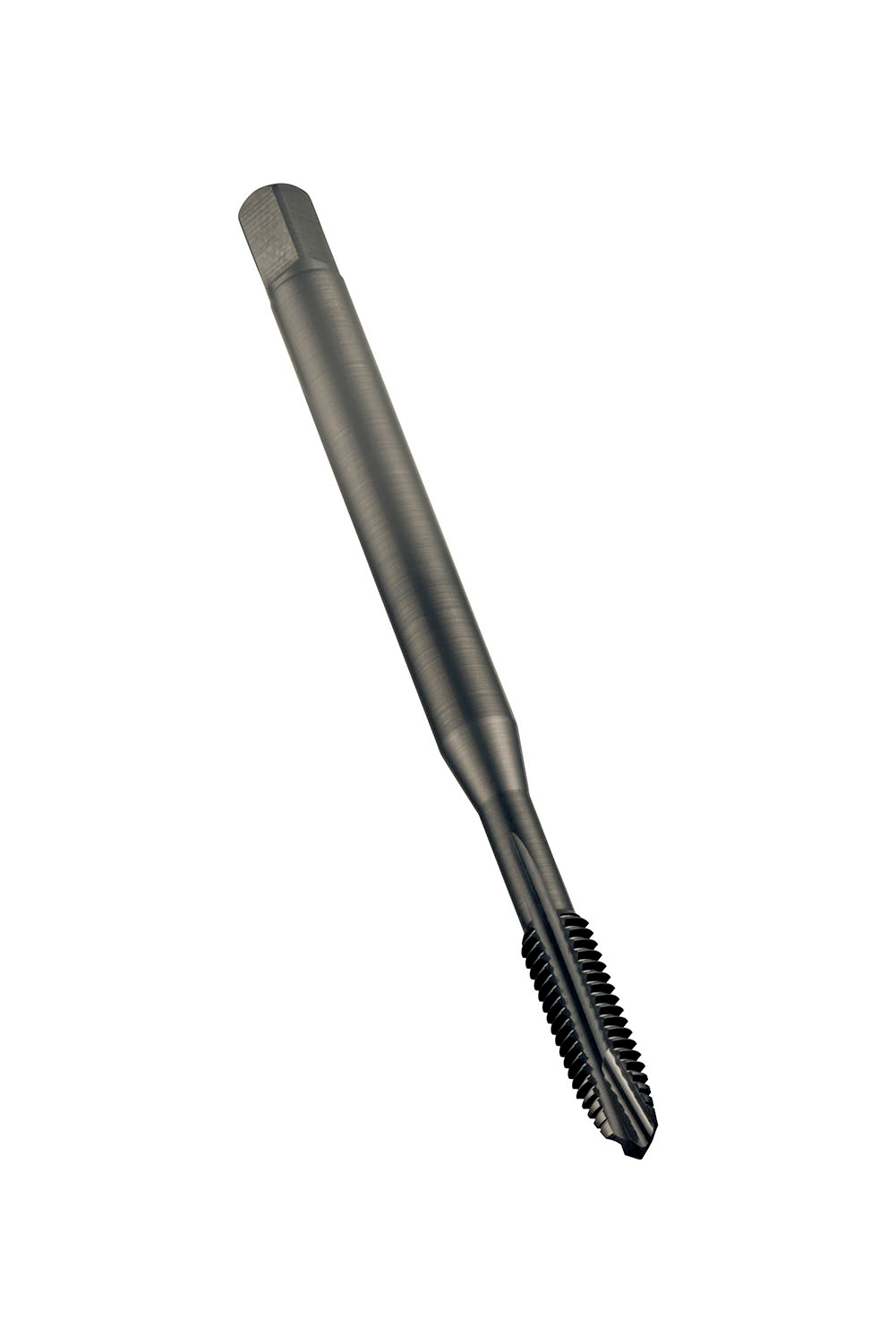

M Machine Tap Spiral Point
Material ID: 5973436
Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
