Dormer-Pramet

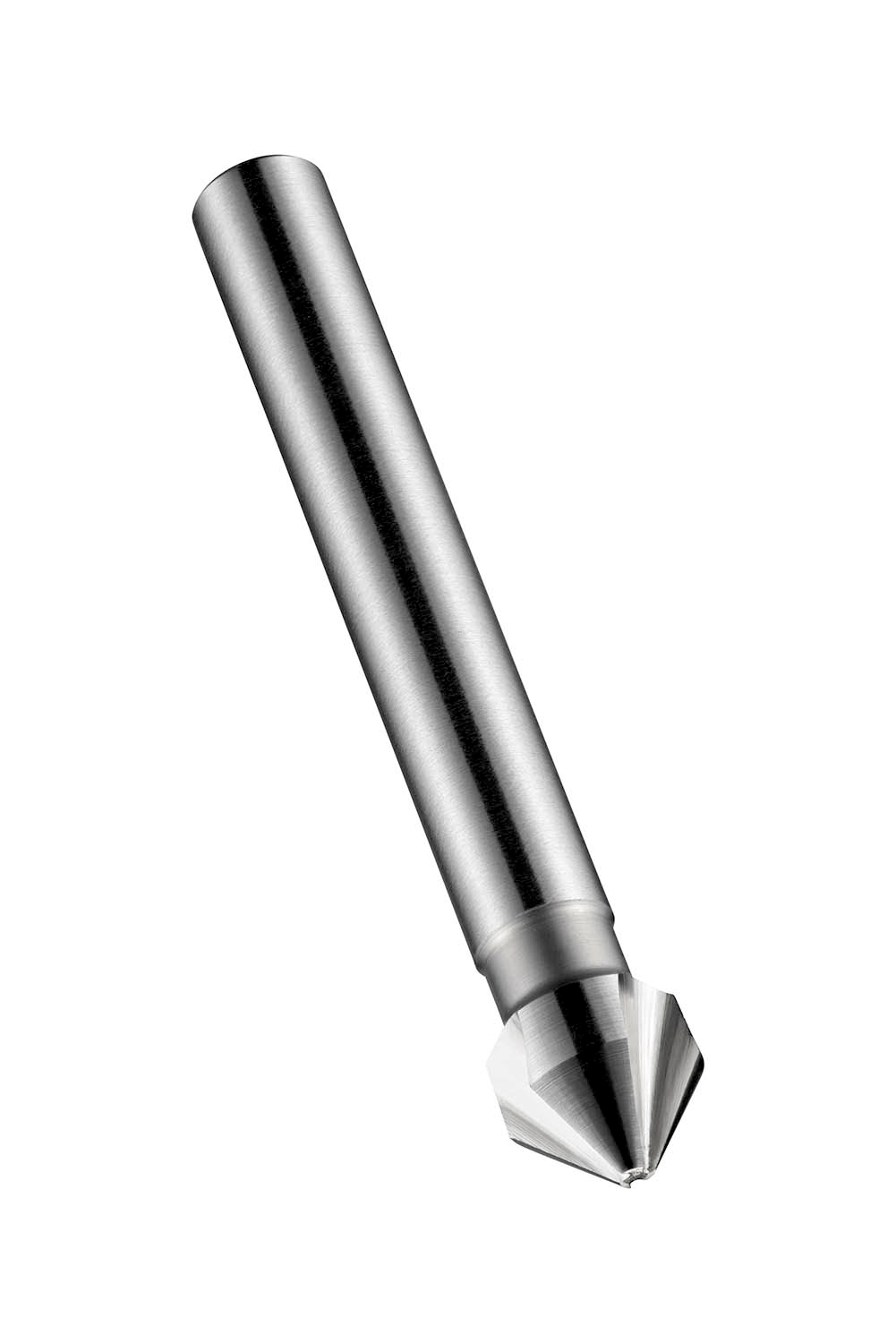

Countersink with 3-flutes, 82° chamfering angle, maximum diameter 16.50 mm with an overall length of 60 mm and a head length of 10.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for US standard countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Minimum Order Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5972798
