Dormer-Pramet

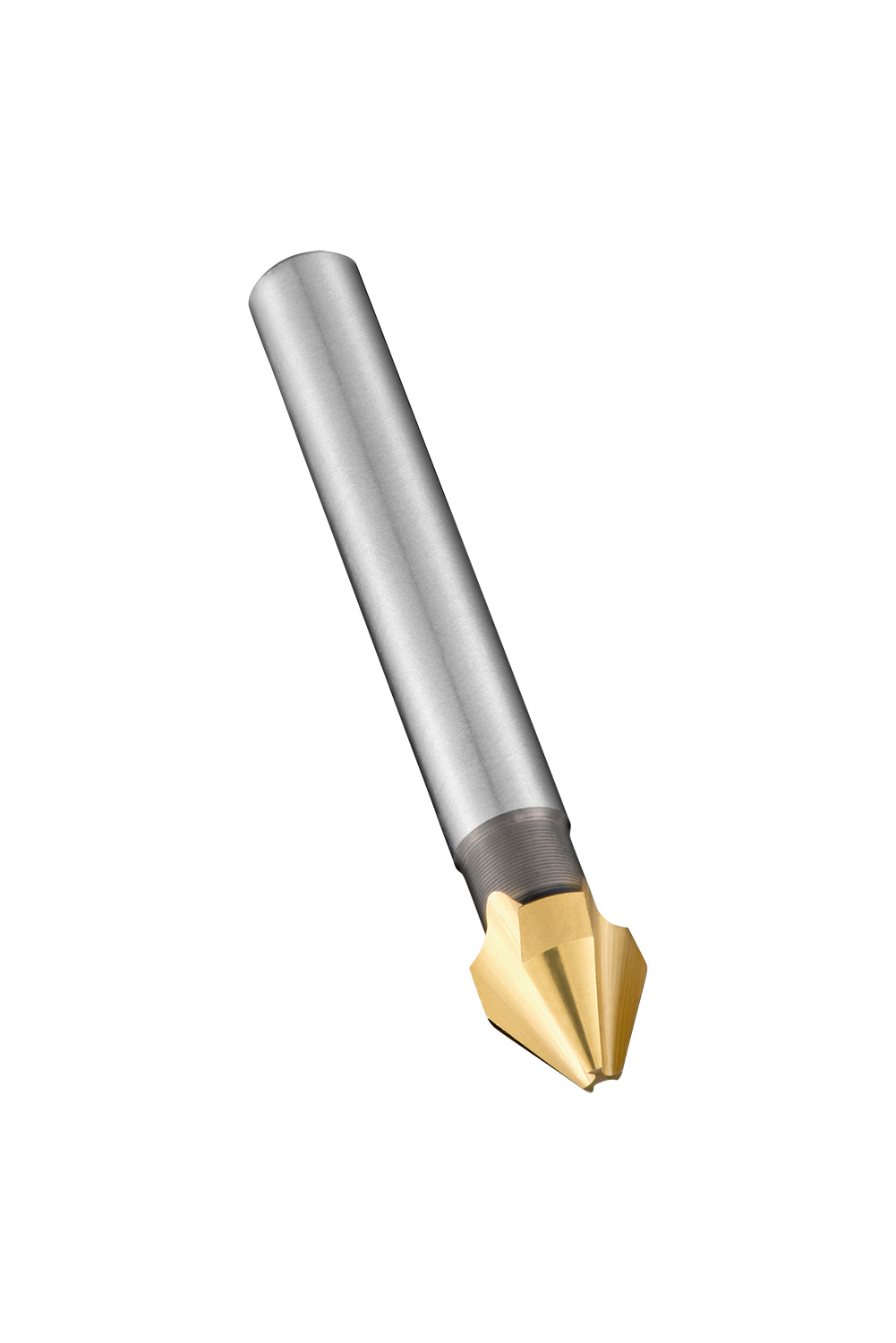

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 8.00 mm with an overall length of 50 mm and a head length of 8.5 mm and 6 mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 2.00 mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/5972782
